Fiber Laser Marking
PL5-Plus
PL5-Plus
PL5-Plus
PL5-Plus
PL5-Plus

MAIN ADVANTAGES

  • Stress-free long-time operation
  • High-quality precision components
  • Plug-and-play, zero maintenance costs
  • Multi-language support, one-touch marking
  • High efficiency, marking speed up to 7000mm/s
  • Ergonomic one-hand control
  • Self-developed chip for fast large-volume data processing

APPLICATION

  • Fonts & custom text marking
  • Logos & graphics engraving
  • Dates & variable data marking

SPECIFICATIONS

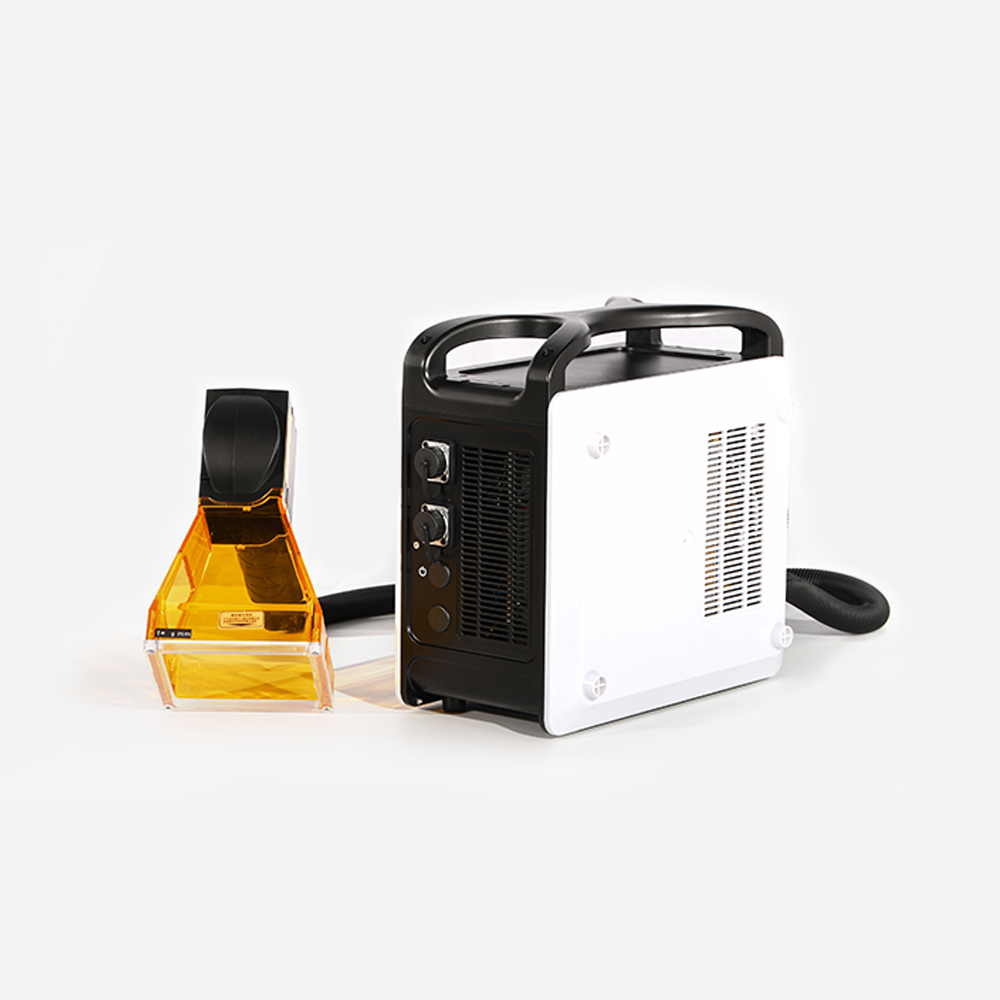

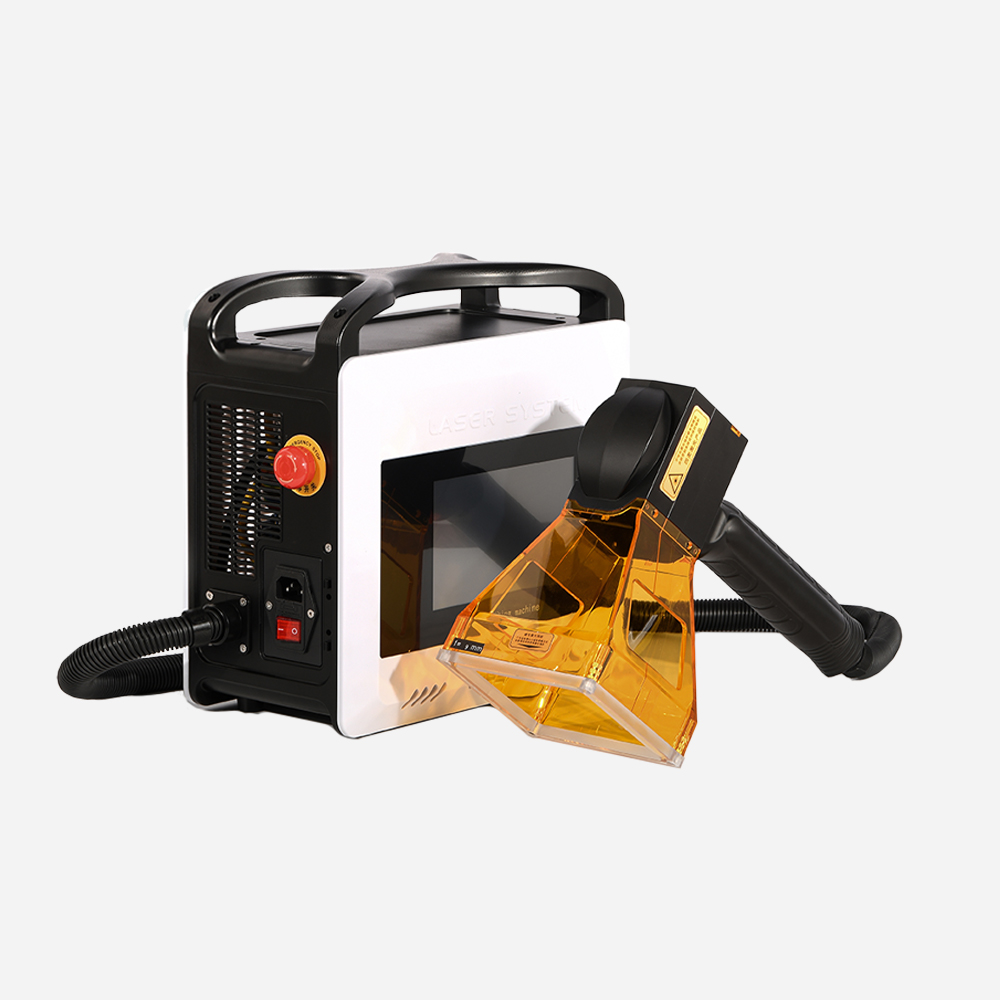

Product Name PL5-Plus Handheld 800 series laser coding machine

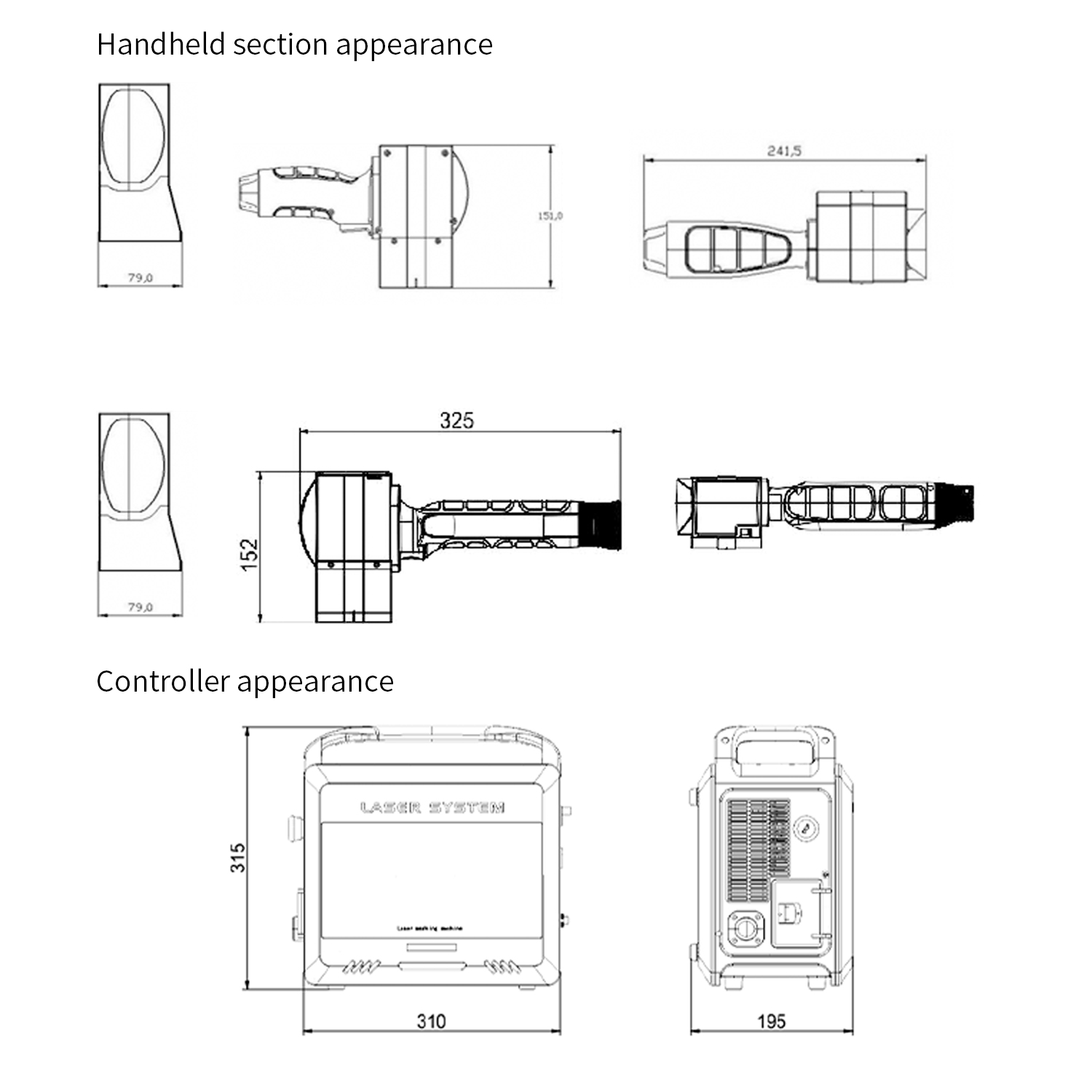

Size 241.5mm×79mm×151mm
Weight 9kg
Power Supply 220V
Engraving Range 50×50mm (Standard) / 100×100mm (Optional)
Marking Material Engineering plastics
File Format BMP/DXF/HPGL/JPEG/PLT
Laser Wavelength 1064nm
Operating System Linux
Maximum Pulse Energy 0.75mJ
Engraving Speed ≤7000mm/s
Reflector Size Standard: 8.5mm
Positioning Method Red light positioning
Fully Charged Time 4hours(battery)
Adaptable Temperature 0-40℃
