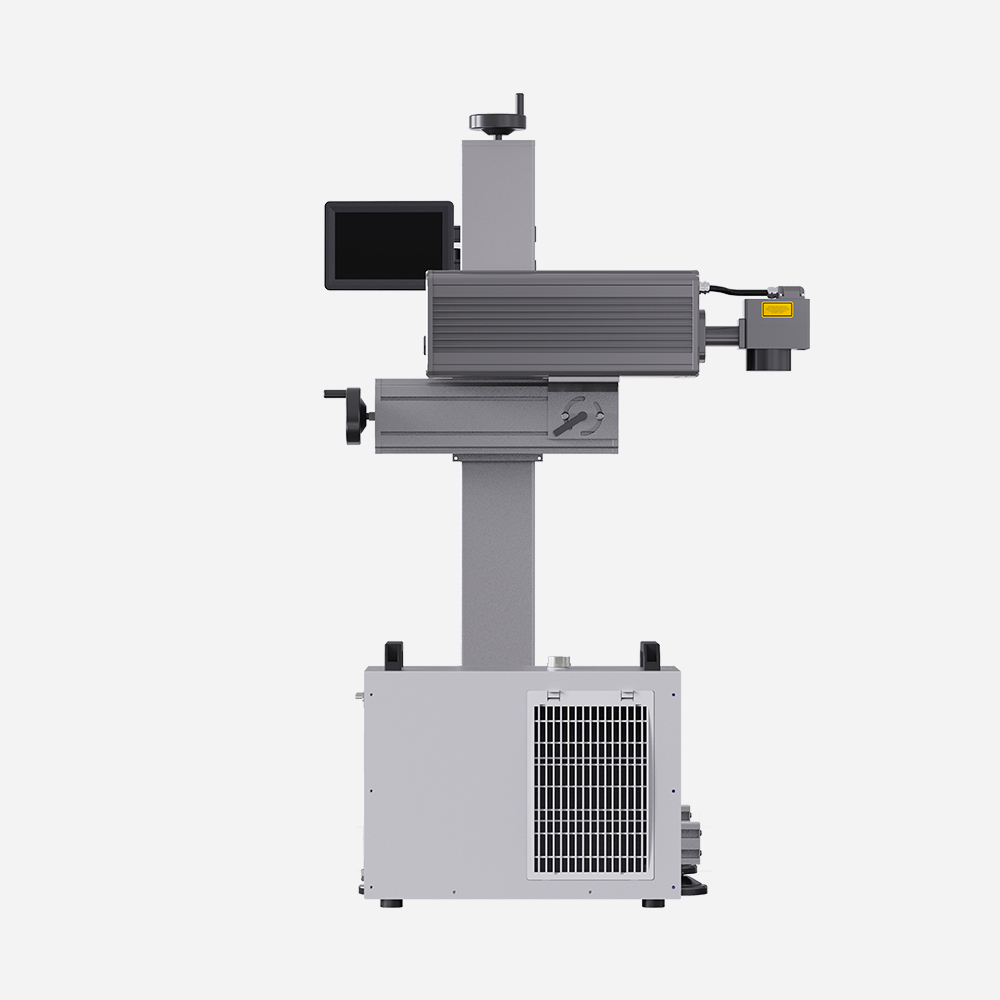

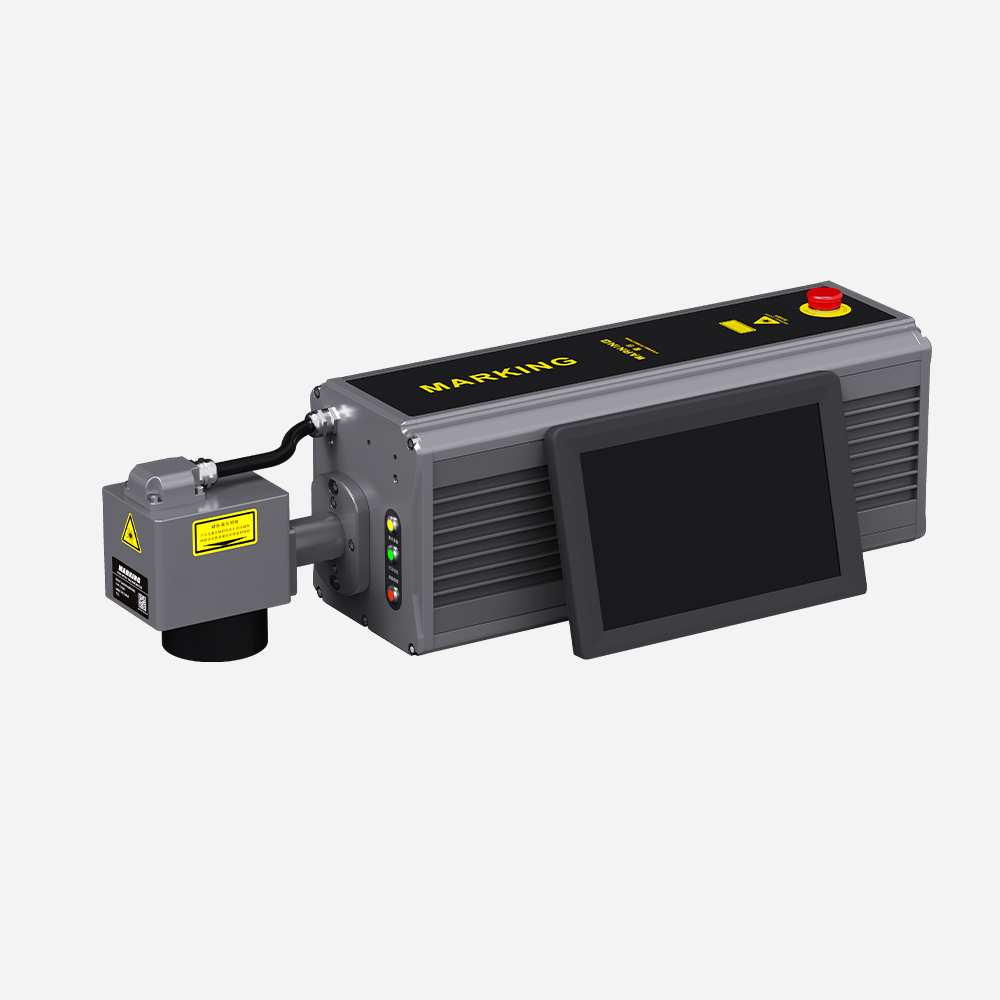

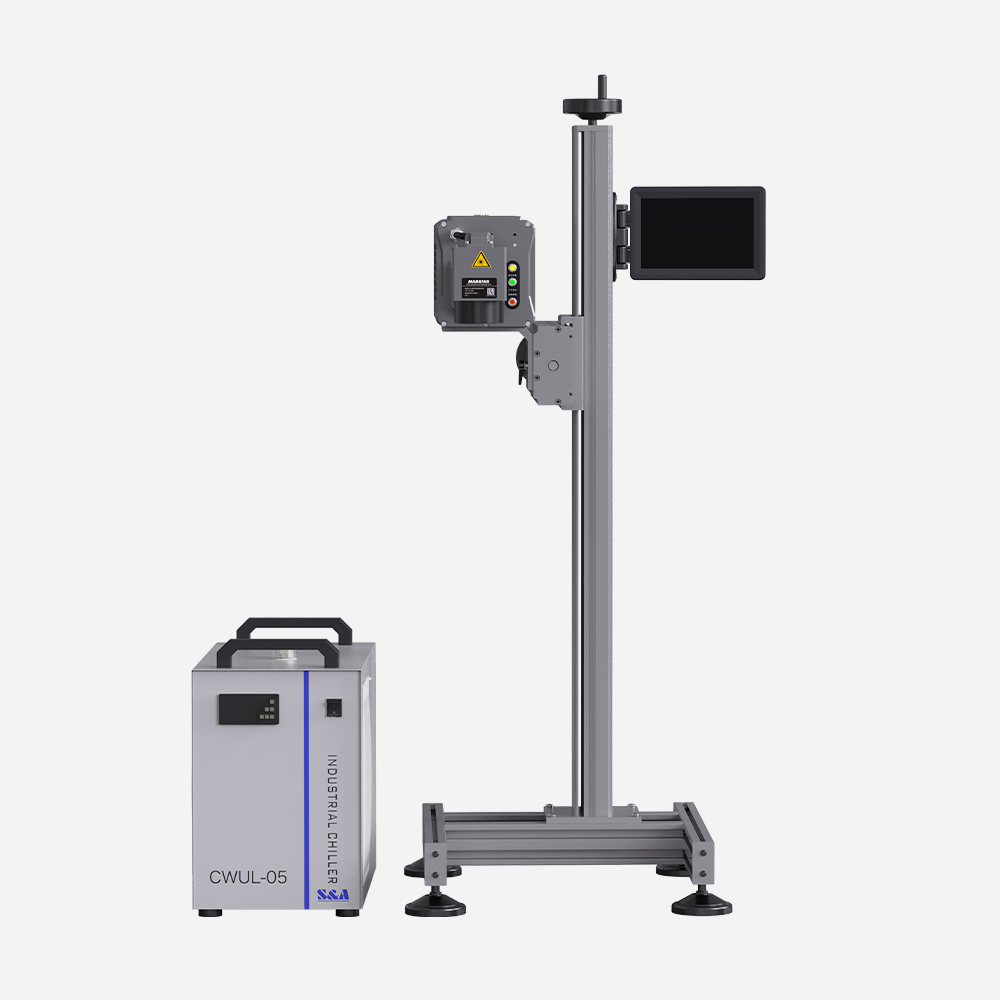

PL3 UV Flying Laser Marking Machine

More extensive application range for both metal and non-metal materials

High Availability: No consumables replenishment needed (zero downtime); air-cooled laser source ensures high availability with no unscheduled downtime; no mechanical maintenance required
Built-in Productivity: UV enables high-speed on-the-fly marking to boost efficiency; permanent coding with vision-readable 1D/2D codes for traceability
Easy to Install: Modular design allows quick assembly and operation startup within hours; compact footprint requires no additional installation space
Easy to Use: Simple intuitive operation with no high-skill labour required; supports marking in any orientation and location for flexible use
High Degree of Protection: IP55 protection grade, suitable for tough and dusty production line environments

Parameter	UV-3W	UV-5W	UV-10W
Power	UV-3W	UV-5W	UV-10W
Machine Material	All aluminum sandblasting oxidation
Laser Service Life	More than 20000-30000 hours
Laser Wavelength	355nm
Output Power	≥4.2W	≥6.5W	≥12W
Marking Speed	≤12000mm/s
Cooling System	Water cooling (with chiller)
Focus Lens	210mm
Minimum Line Width	0.01mm
Repeated Accuracy	0.001mm
Marking Range	110mm×110mm (Optional)
Number of Rows	Any line within the marking range
Production Line Speed	0~130m/min (depend on the material)
