PL3-PRO Split-type Laser Marking System

High-precision and high-efficiency printing system
Production line speed: 0-200m/min | Laser type: nanosecond ultraviolet laser generator

Modular Split Design: Separates laser head from main control unit for flexible installation, easy integration into different production environments, space-saving and convenient maintenance/adjustments
High Precision & Stable Output: Delivers stable and consistent laser output for clear, sharp, uniform marking results; reliable performance on a wide range of materials for detailed marking and continuous operation
Easy Integration & User-Friendly Operation: Seamless integration into automated production lines or standalone workstations; intuitive controls and straightforward setup reduce training time and improve efficiency

Model	PL3 PRO Split-type laser marking system
Overall Material	Anodized aluminum structure (optical path), sheet metal spraying (control box + water tank)
Laser Type	Nanosecond ultraviolet laser generator
Laser Wavelength	355nm
Printing Method	High-precision two-dimensional scanning method
Marking Speed	≤12000mm/s

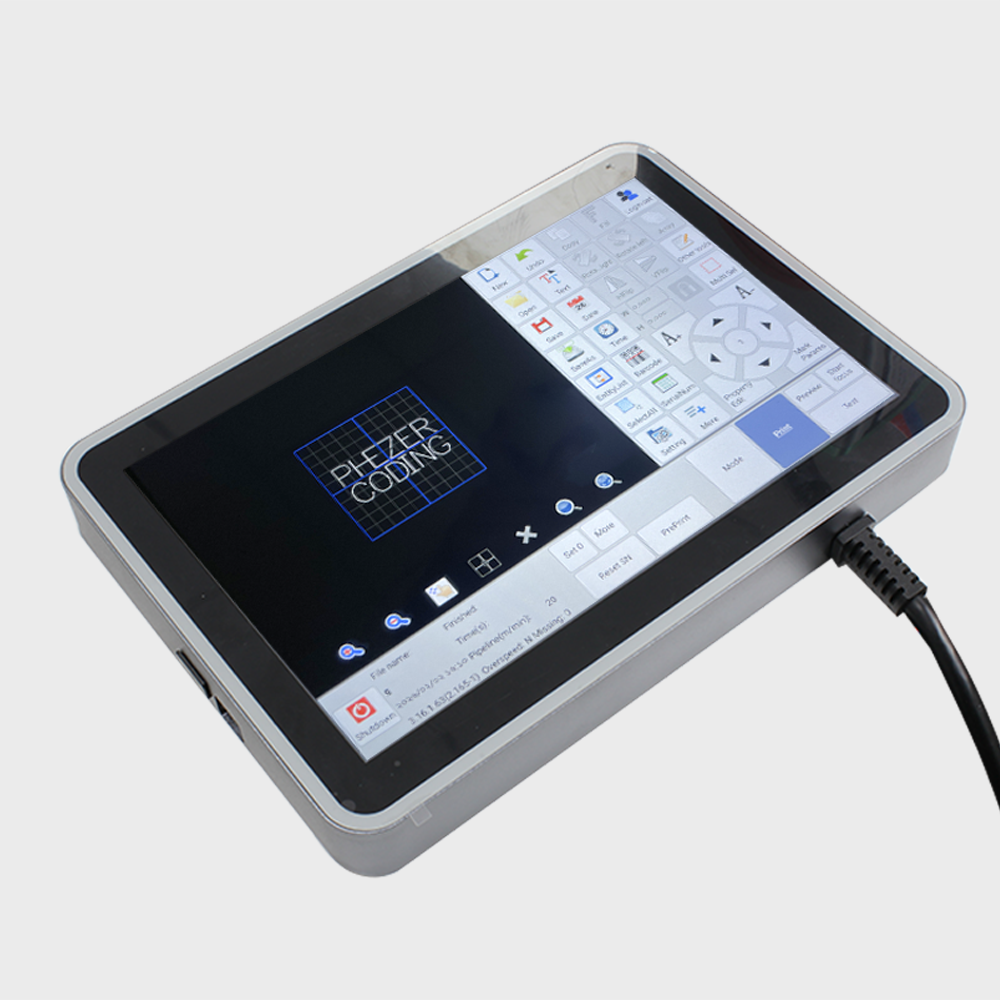

Master Control	Highly integrated motherboard, 10-inch external touchscreen, P9 marking system
Operating System	Linux

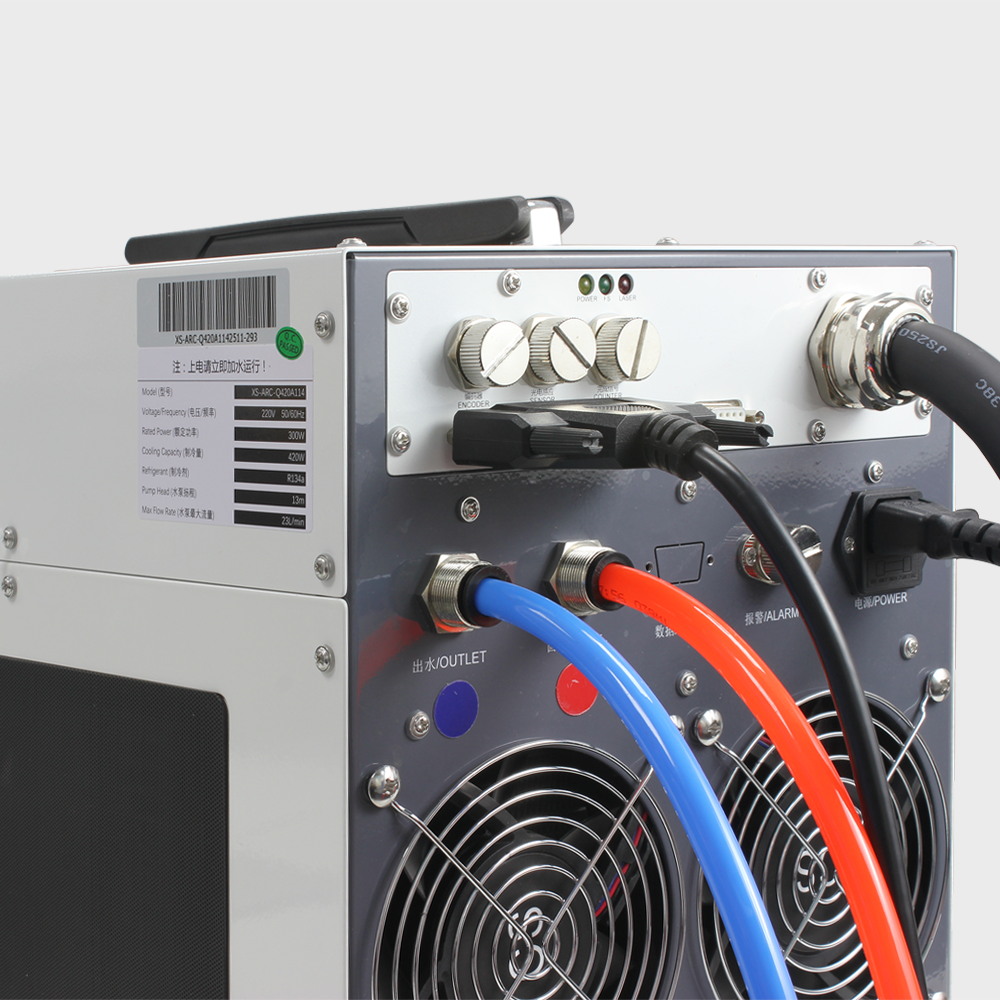

Cooling System	water cooling
Inkjet Marking Type	A multi-functional printer capable of printing both dot matrix and vector graphics
Reflector Size	Standard configuration: 8.5mm
Coding Range	Standard configuration: 100mm×100mm
Positioning method	With directional ultraviolet light preview positioning and dot-line focus
Production Line Speed	0-200m/min (the specific speed depends on the product material and the content being printed)
File Format	BMP/DXF/HPGL/JPEG/PLT
Power Supply	220V-50Hz
Maximum Power Consumption	≤750W/4A
Machine Net Weight	23kg

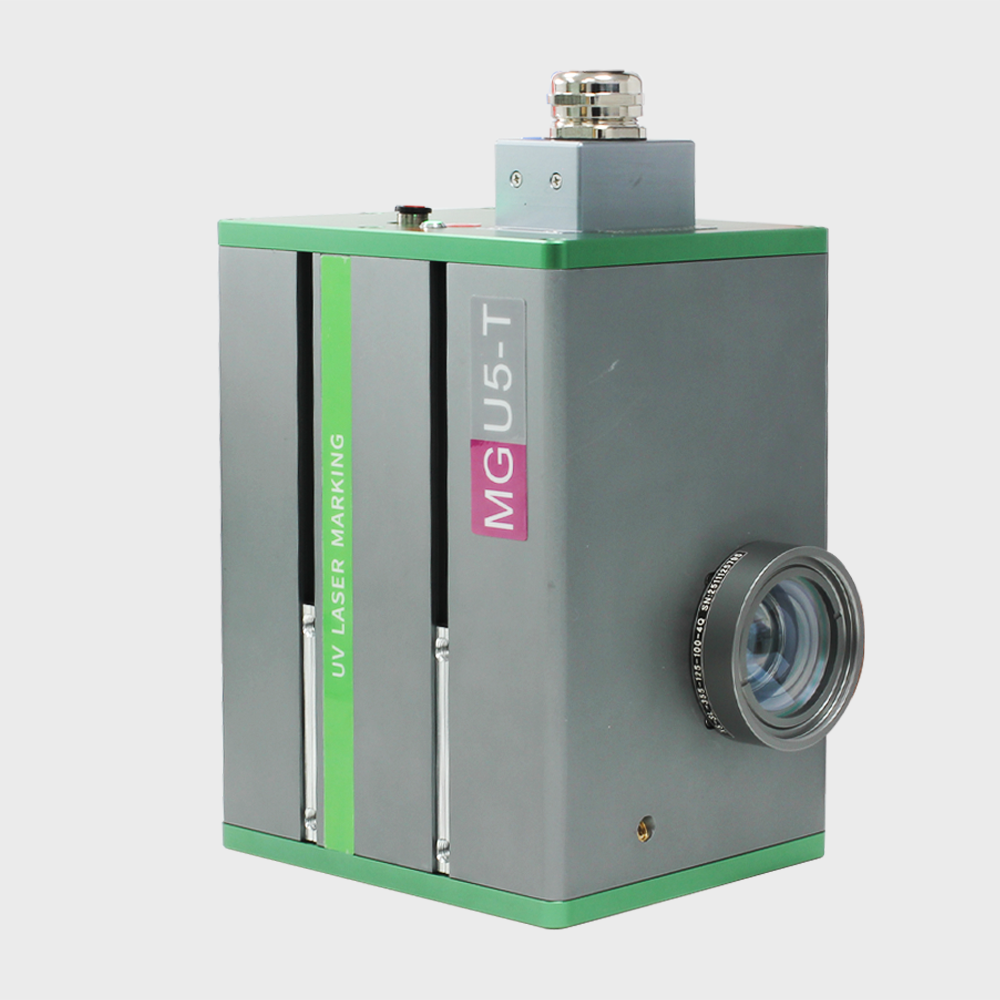

Optical Path Size	231mm×144mm×180mm

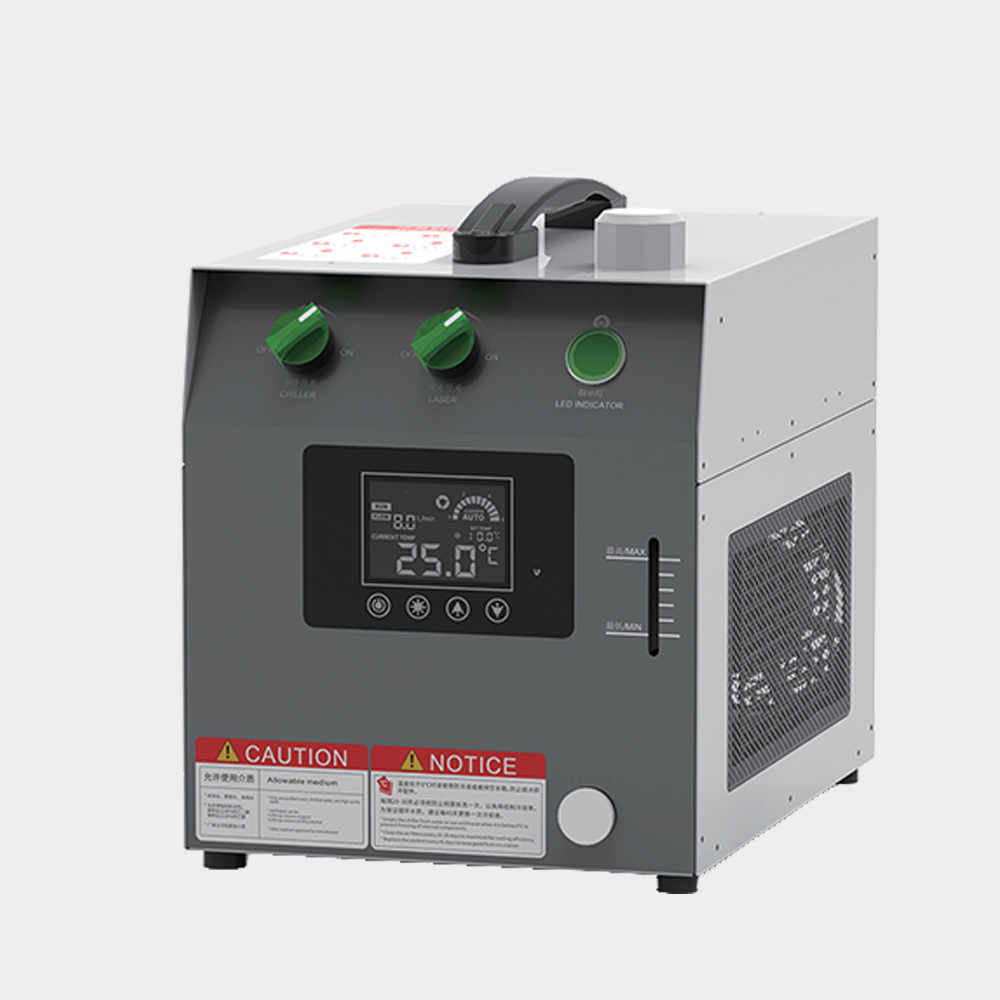

Control Box + Chiller Dimensions	345mm×249mm×282mm
Adapt To Temperature	5-40℃
Pollution Level	2
Supported Languages	Simplified Chinese, Traditional Chinese, English, Korean, Russian, German, Spanish, French, Italian, Japanese, Portuguese, Turkish, Arabic, Persian, etc.
Barcode/QR code	Code128A, Code128B, Code128C, Code39, Code93, Ean13, PDF417, Q1 Code, QR, DM, GS1-DM, AztecCode, HanxinCode, DotCode, etc.
