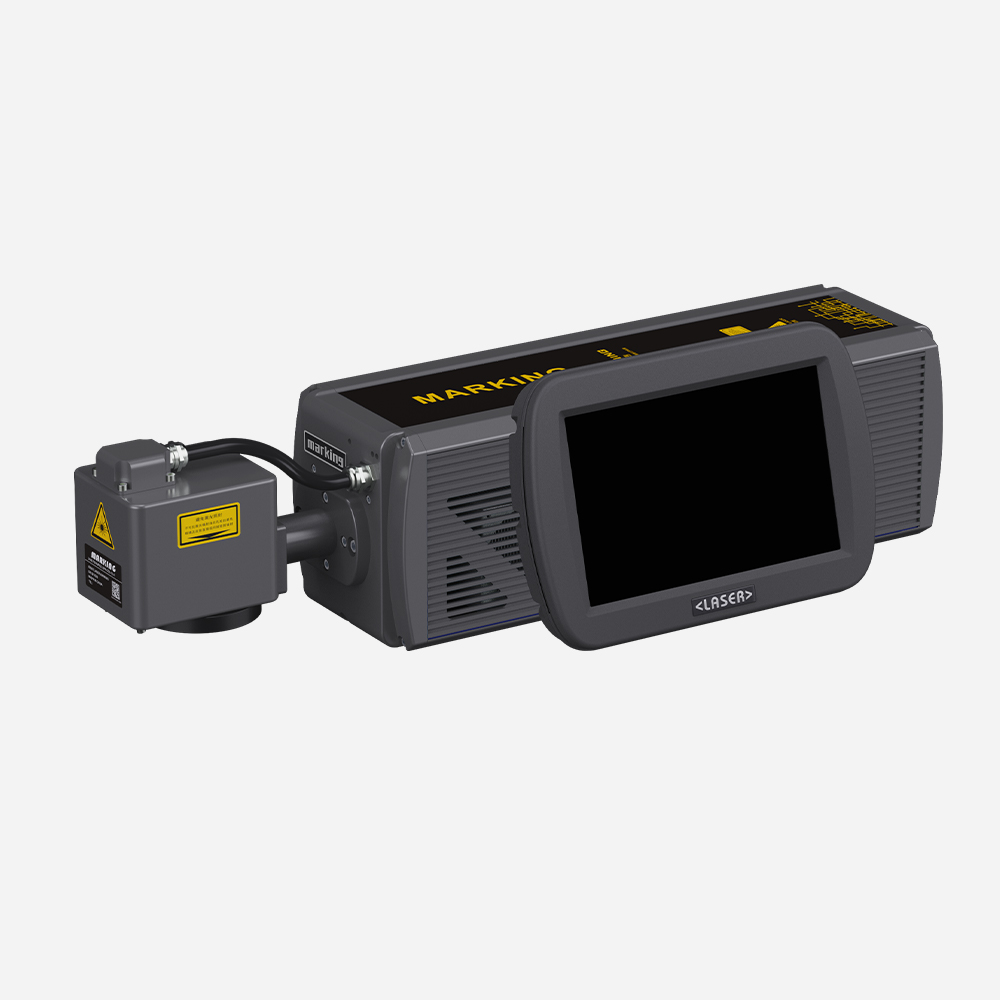

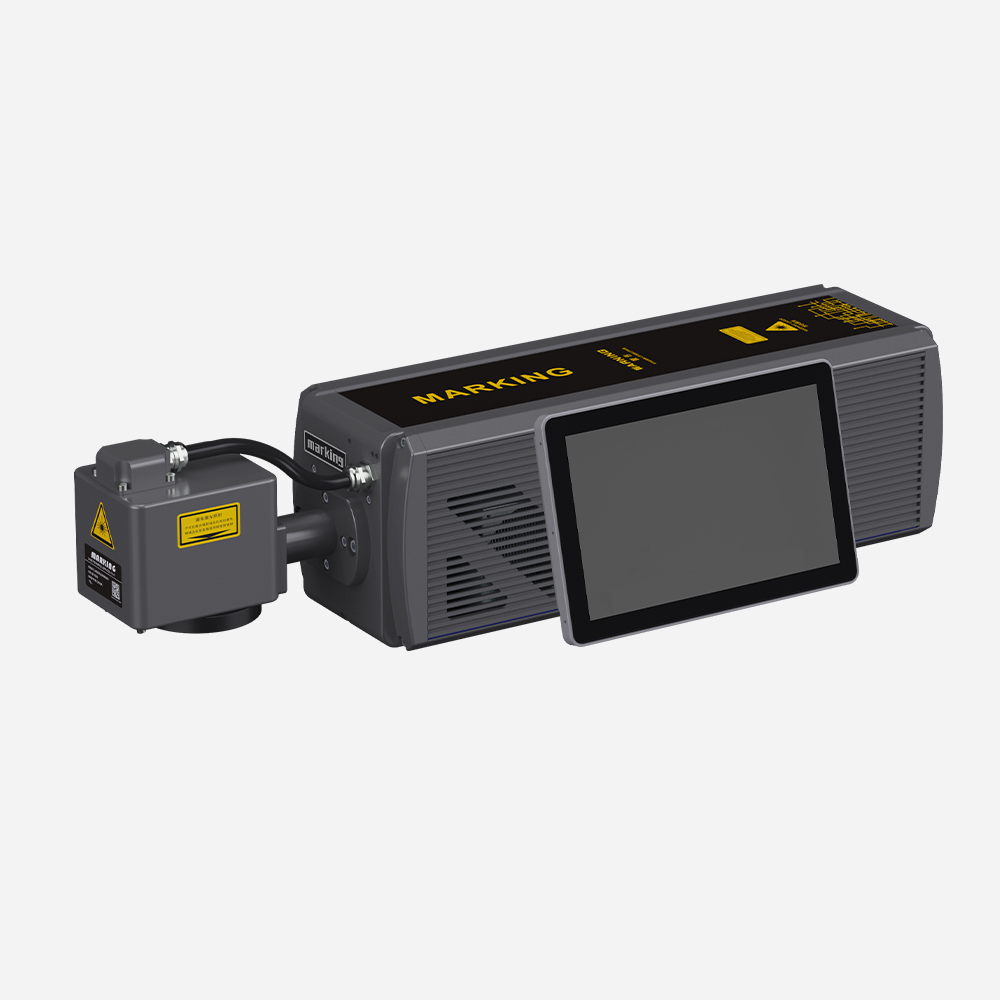

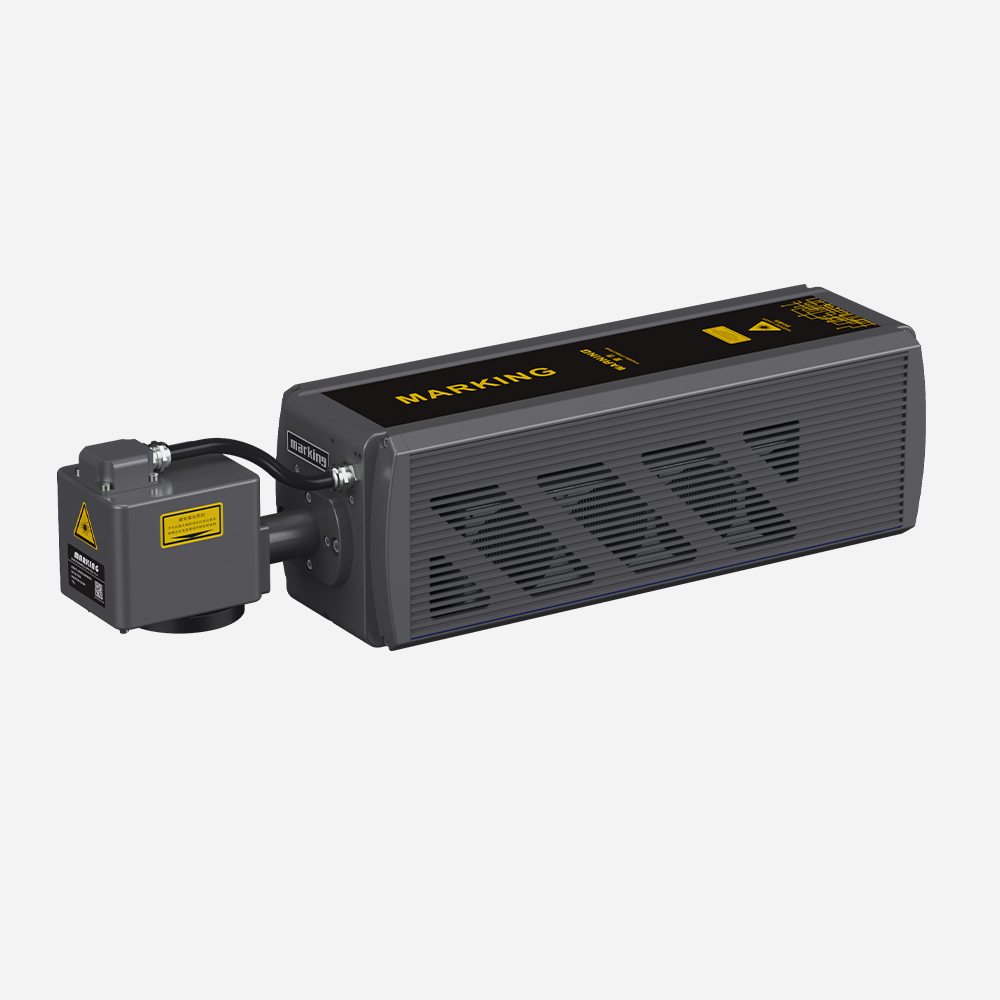

PL4 CO2 Flying Laser Marking Machine

More extensive application range for both metal and non-metal materials

Compact Design: Compact ready-to-print modular design, easy to install and deploy quickly
Greater Flexibility and Uptime: Wheel-equipped frame enables movement between production lines in less than 15 mins; no need to stop production line during relocation
Easy to Install: Modular design allows quick assembly and operation startup within hours; compact footprint requires no additional installation space
Versatile Performance: Multiple power options (30W/40W/60W) to suit different production lines and materials; ideal solution for various speeds, applications and production environments
High Degree of Protection: IP55 protection grade, suitable for tough and dusty production line environments

Parameter	CO2-30W	CO2-40W	CO2-60W
Power	CO2-30W	CO2-40W	CO2-60W
Machine Material	All aluminum sandblasting oxidation
Laser Service Life	More than 20000-30000 hours
Laser Wavelength	1060nm/1020nm/930nm
Output Power	≥38W	≥43W	≥70W
Marking Speed	≤12000mm/s
Cooling System	Air cooling
Laser Source	CRD/DAWEI
Focus Lens	145mm
Minimum Line Width	0.03mm
Repeated Accuracy	0.01mm
Marking Range	110mm×110mm (Optional)
Number of Rows	Any line within the marking range
Production Line Speed	0~130m/min (depend on the material)
