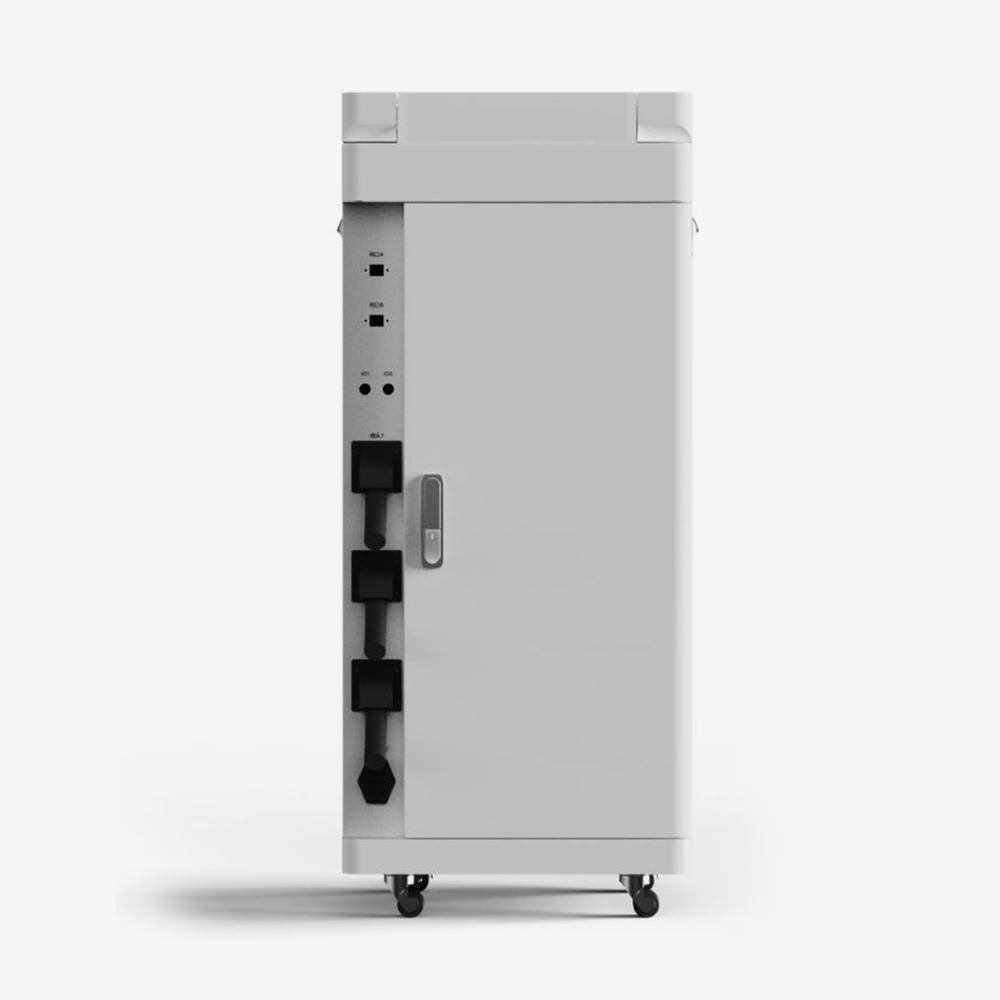

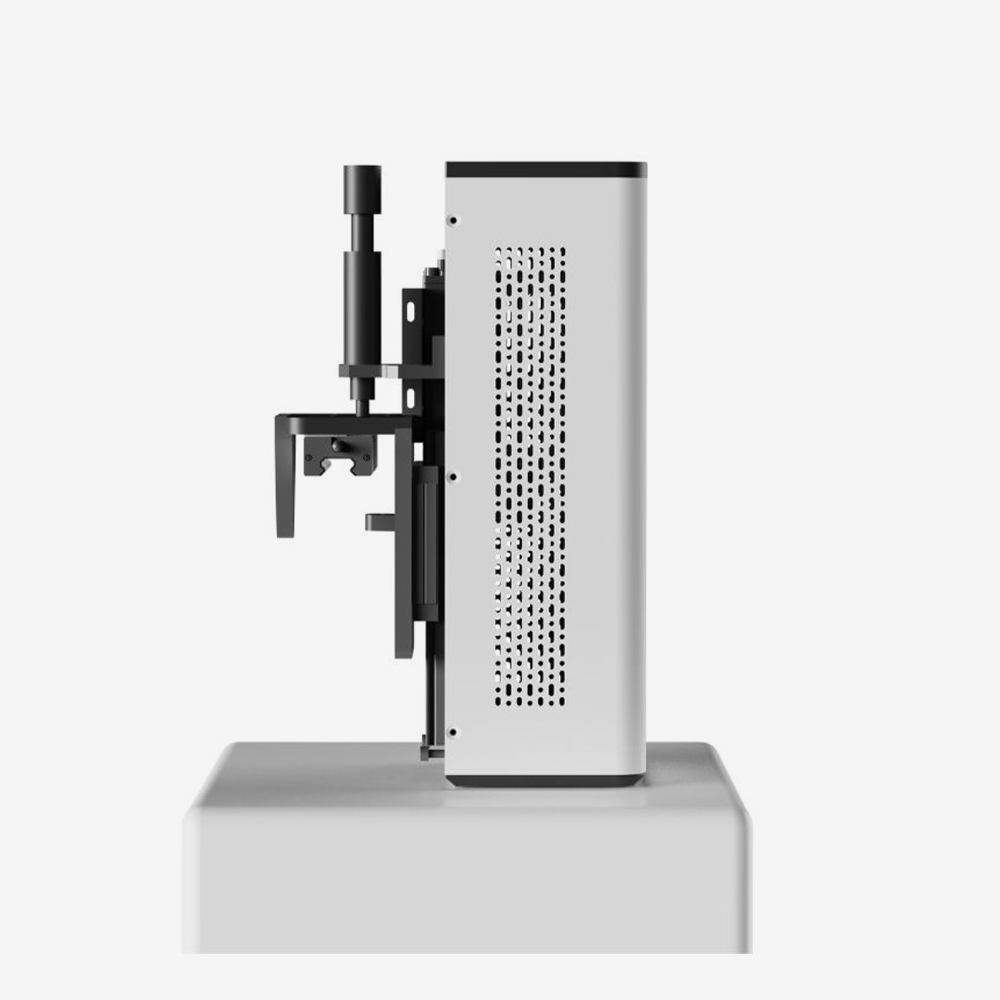

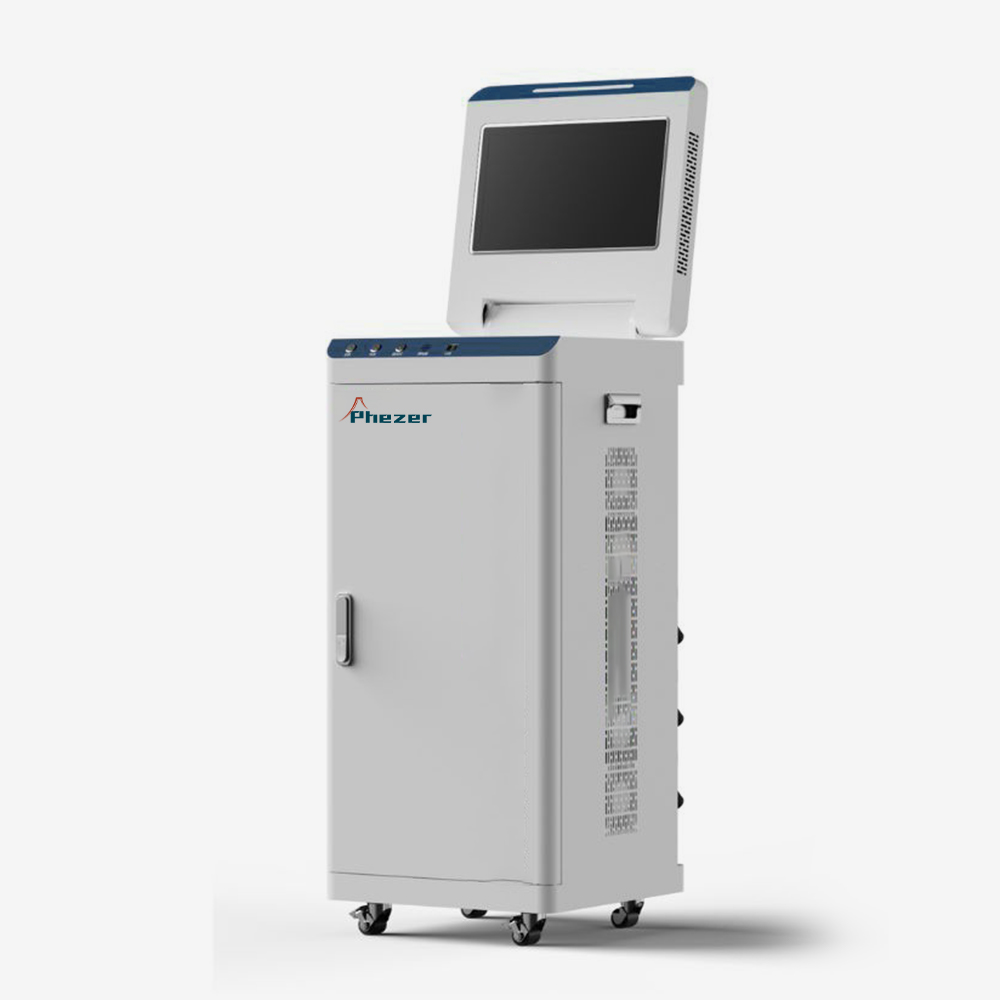

PV20 Piezo Inkjet Printer

High-precision and high-efficiency printing system
Print Height: 32.4mm, 54mm, 71.8mm, 108mm | Support 1-2 heads

Wide Industrial Application: UV variable data inkjet printers provide stable, high-speed printing solutions for QR codes, 1D codes and batch information; support simultaneous printing of multiple variable QR codes on wide-format, multi-channel lines with real-time detection for uniqueness and accuracy
High-speed Printing & Inspection: Print high-precision variable QR codes on high-speed production lines (adapting to various materials); equipped with linear visual inspection system for instant data scanning to ensure flawless codes
Linear Camera Inspection: High-resolution linear cameras collect real-time data continuously, accurately detecting QR code integrity, contrast and readability even on high-speed moving products
Area Scan Camera Inspection: High-resolution 2D imaging technology for printing quality monitoring of 2D codes/barcodes; real-time docking with enterprise database to ensure data accuracy and uniqueness in high-speed production

Parameter	PV20	PV30
Print Content	Text, monochrome pictures, logos, 1D code, 2D code, etc.	Two-color text, two-color pictures, logos, 1D codes, 2D codes, etc.
Print Software	Monochrome inkjet printing	Two-color inkjet printing software
Ink Color	Black, white, red, blue, green, yellow, orange and other single colors	Black, white, red, blue, green, yellow, orange and other two-color
Print Speed	200dpi 200m/min 300dpi 180m/min 400dpi 150m/min	200dpi 200m/min 300dpi 180m/min 400dpi 150m/min
Printhead resolution (dpi)	600*1200dpi
Ink supply	High-precision independent negative pressure ink supply
Printing height	32.4mm, 54mm, 71.8mm, 108mm
Ink Type	UV ink, weak solvent ink
Printing length	1 meter (printed content is smaller than 1.4mm of the product)

General Parameter	Specification
Distance	0.5mm-2mm
Interface Type	USB2.0、RS232、Network port
Cleaning method	Independent cleaning
Ambient Temperature	5-40℃, depending on the ink used
Ambient Humidity	10-75%, non-condensing
Supply voltage	AC220V/50HZ
Printing materials	Good performance on permeable/non-permeable materials (PVC, OPP, BOPP, PET, coated paper, metal, paper, carton, wood, PP lunch boxes etc.)
Matching equipment	Rewinding equipment, paging machines, assembly lines, printing machines, packaging equipment, etc.

The parameters are subject to actual printer for updated versions.
