Overall Dimensions:
Length: 24.5cm | Width: 13cm | Height: 12.3cm
Gross Weight: 1.5KG
Key Components:
Rolling wheel | Photocell interface | Power button
Power connector | Printer Battery
Ergonomic design with precise structural dimensions, easy to hold and operate in various working environments.
• Matching 600-line incremental photoelectric rotation counter
• Vivid effect of restoring the picture
• Can print 5cm large patterns
• Realize double-box two-color inkjet, satisfy multiple production needs
| Parameter | Specification |
|---|---|
| Print Head | Thermal inkjet 2.5 |
| CPU | Quad core 1.4GHz |
| Operation System | Linux |
| Print Distance | Best quality with 2-5mm |
| Interface | USB |
| Print Resolution | 600dpi (Maximum) |
| Weight | GW 1.5KG |
| Dimension | 24.5*12.3*13cm, 1.5kg |
| Battery | 2600mAh @ DC16.8V |
| Ink Type | Water-based/72ml, Solvent/72ml |
| Material of Printer | Metal+ABS |
| Print Height | 2-50.8mm, support 1-20lines |
| Language | English, Chinese, Arabic, Spanish, Portuguese, Korea, Italian, Russia, German, Farsi |
| Adapter | AC input 100-240V; DC output 16.8V/2A |
| Ink Color | Black, white, red, yellow, blue, green |
| Print Content | Text, time, serial number, logo, QR code(variable), barcode, DM code |
| Print Media | Porous&non-porous materials, plastic, carton, metal, wood, ceramic |
| Operational Environment | Temperature 0-45℃ (The best:20-30℃) Humidity 40%-60%Rh |
It can realize multi-functional operation. The photocell interface can realize the production line coding and improve the production efficiency.
The synchronous encoder is for precise coding, it can prevent shaking or uneven motion from causing coding failure.
Long-lasting standby with large capacity battery. Long-term work of online coding can be realized, frequent charging can be avoided.
When the display interface setting operation is completed, please press the red button when starting to print.
The handle of the inkjet printer has a double-sided three-layer concave texture design, which is conducive to holding firmly and not easy to fall off.
Equipped with 4-core CPU + independent research and development system, it can be powered for operation.
Ink cartridges can be replaced when the machine is turned on. Never crash, maximize production efficiency.
Up to 1GB/S instantaneous dynamic information transmission, repeated access at multiple points, clear coding temperature, high fault tolerance rate, large stock.
TIJ dedicated ASIC chipset:
• 1GB/S instantaneous conduction
• Synchronous access, stable and efficient
• High-density core, high-definition coding
High-performance chip for industrial-grade printing stability
The motherboard uses anti-interference industrial-grade solid-state electronic components, going through SMT manufacturing process.
-20~40℃ Temperature Resistance
Run in high/low temp environments without malfunction
10~90%RH Humidity Adaptability
Normal operation in humid environments
Dust-Proof Design
Clear printing even in dusty environments

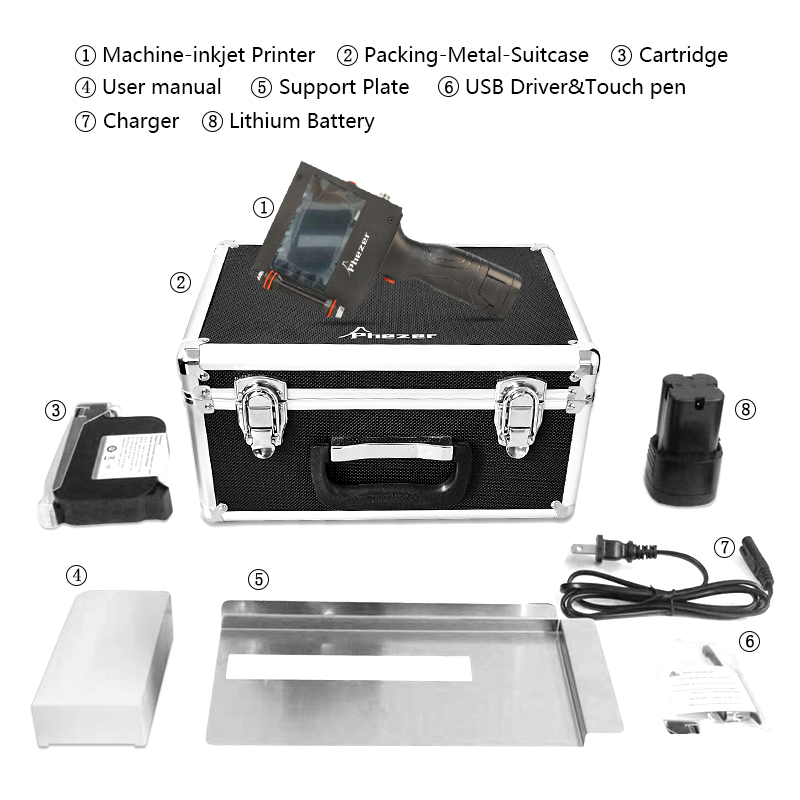

Complete accessory package, ready to use out of the box without additional purchase.
