Print Up to 10CM Large Characters | Printing Height: 2.5mm - 100mm
600DPI HD Printing Head
Four cartridges & four nozzles for 10CM large character printing
42ML Large Capacity Cartridge
Quick-dry solvent ink, anti-clogging design
Adjustable Character Height/Lines
2.5mm-100mm height, up to 40 lines printing
6000mAh Large Capacity Battery
22h standby, 4h continuous working time
8GB Memory Storage
Store massive printing templates and data
1-10 Level Gray Adjustment
Free color depth adjustment for different needs
Printing Dimension Range:
Maximum Printing Width: 100mm (10CM) | Overall Width: 210mm
Minimum Character Height: 2.5mm
Printing Speed: 10M/MIN (Best Performance)
Gray Level Adjustment (1-10 Levels):
1 = Deep Black | 10 = Light Gray - Customize print density freely
• 600-line incremental photoelectric rotation counter for precise positioning
• Vivid restoration of patterns/text with 600DPI high definition
• Four nozzles configuration supports multi-color printing & large character requirements
• Compatible with assembly line work - realize automatic coding and improve work efficiency
Up to 1GB/S instantaneous dynamic information transmission, multi-point repeated access, stable coding temperature, high fault tolerance rate, large data storage capacity.
TIJ ASIC Chipset Advantages:
Industrial-grade chip ensures clear, stable and delay-free inkjet coding even in harsh environments
Multiple color options (black/white/red/yellow/blue/green) with quick-dry solvent ink formula. Anti-clogging performance, equipped with ink level detection to avoid production interruption caused by ink shortage. Easy plug-and-play design, no professional maintenance required.
Only 3.5 hours for full charge, standby time up to 22 hours, continuous working time over 4 hours. Support "work while charging" mode for uninterrupted production. Lithium battery with overcharge/over-discharge protection for safety and durability.
Overall Dimensions: 210mm (L) × 205mm (W) × 295mm (H)
Net Weight: 1.66KG (Easy to hold and operate for long time)

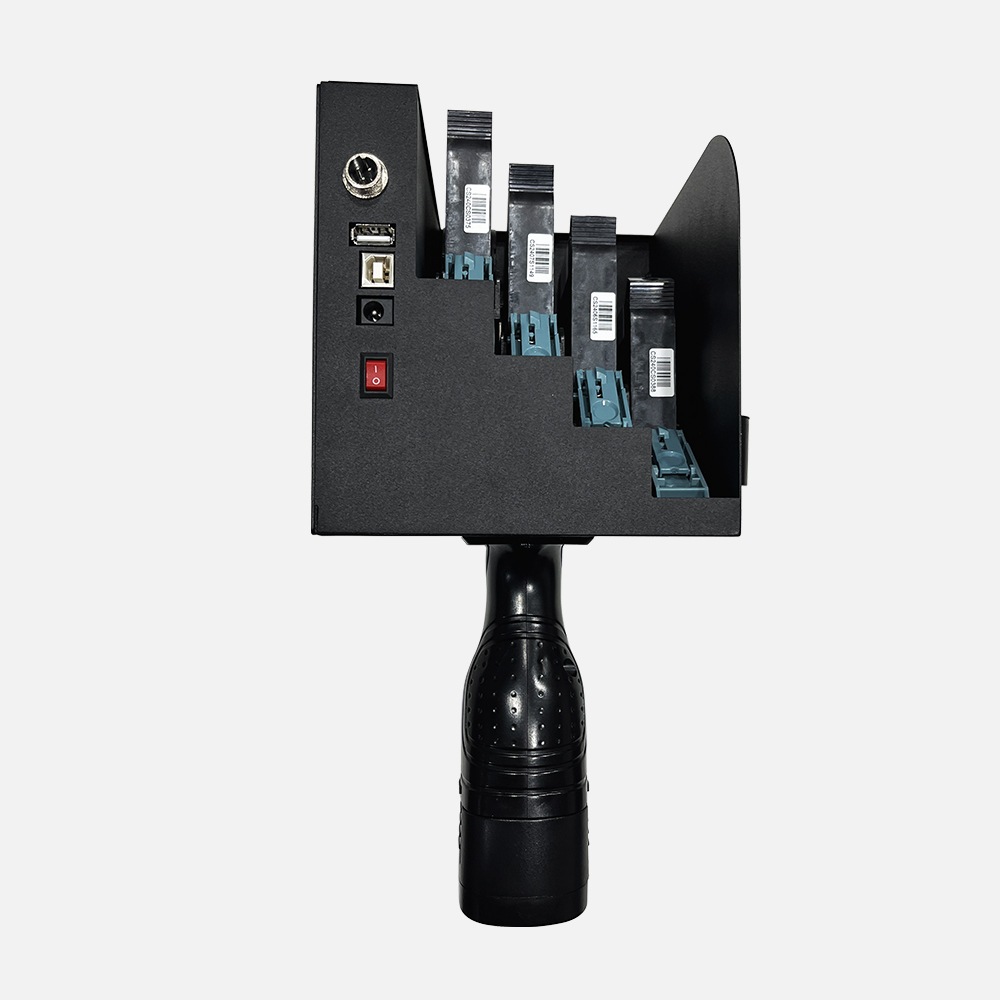

Key Components: Switch button | Photoelectric interface | USB port | Power interface | Synchronizer
| Parameter | Specification |
|---|---|
| Product name | P70 large character inkjet printer |
| Printing precision | 600DPI |
| Printing speed | 10M/MIN (best) |
| Printing height | 2.5MM-100MM (according to the number of printing heads) |
| Printing material | wood, carton, fiberboard, metal, cement, plastic, etc |
| Printing lines | Up to 40 lines |
| Battery capacity | 6000mAh |
| Weight | 1.66KG |
| Storage capacity | 8GB |
| External interface | USB interface, photoelectric interface, power interface, U disk, synchronizer |

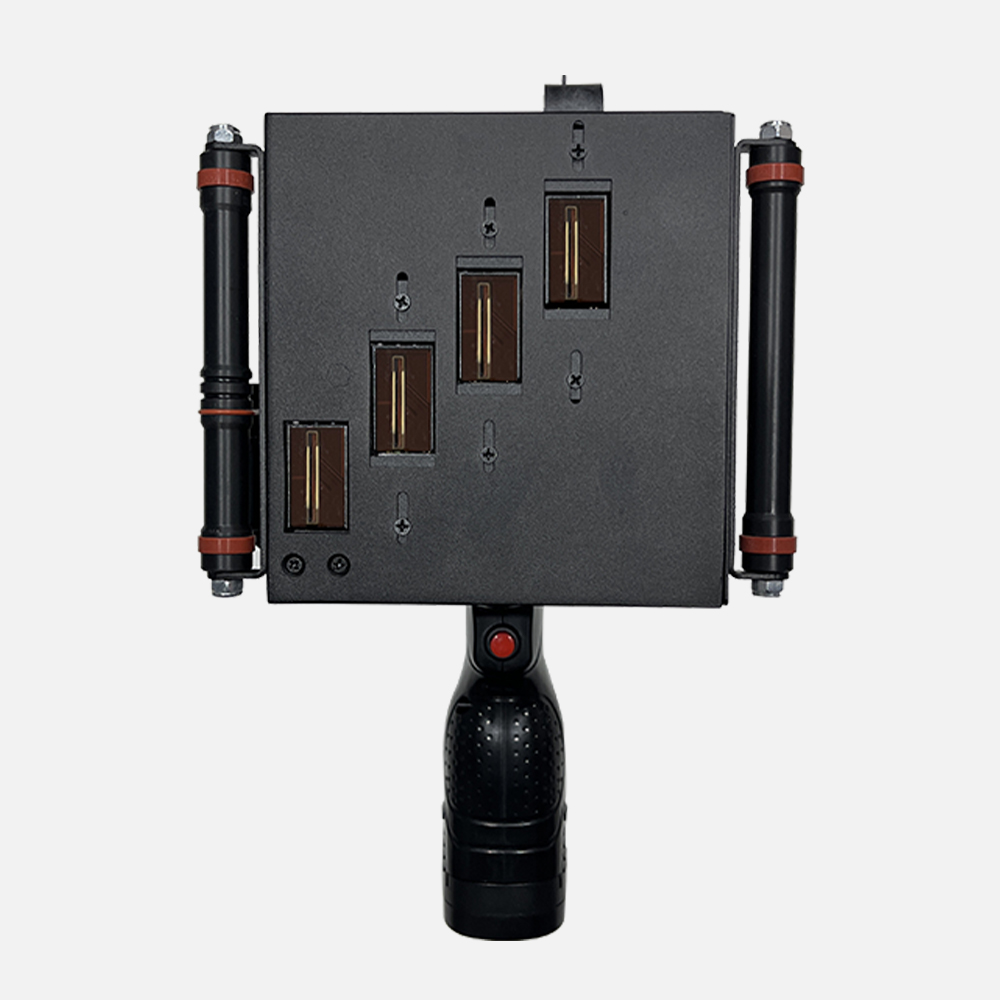

Independent four nozzles enable large character printing up to 10CM, support multi-color combination and meet various production needs.
High-precision synchronous encoder prevents coding failure caused by shaking or uneven movement during high-speed printing.
Long-lasting power supply for all-day operation, support online charging to avoid production interruption from battery depletion.
Ergonomic red coding button - press to start printing after completing display settings, simple and efficient operation.
Double-sided concave texture design ensures firm grip, prevents slipping during long-time operation, reduces fatigue.
Replace traditional roller printing & screen printing processes - high flexibility, short cycle time and lower cost. Suitable for various industries with large character marking needs:
All accessories included - ready to use out of the box for immediate deployment in production environments.
