P260 SERIES 2026 NEW ONLINE MACHINE

Automatic assembly line coding machine

Newly upgraded version 3.0 · Imported drive engine

≤90 m/min
Coding speed<300
Responses/min7″
HD large screen

Adjustable coding speed · key to switch the machine · comes with a multilingual system. Note: Speed varies by font size, concentration and other factors.

⚡ High-speed coding · Improve production efficiency

Coding speed ≤90m/min · Response speed <300 times/min

Improve production, double the efficiency, high speed and stable operation.

🔧 Multiple controls in one machine

Multiple printheads can be combined and printed independently or in a patchwork. Multi-angle flexible coding.

Contact customer service or technical staff for multi-head solutions.

📱 Cell phone operation · Portable experience

Mobile Editorial Content Delivery – edit by cell phone transmission. Text, numbers, dates, letters, symbols, pictures, tables, scan code…

🖥️ Large screen operation · Wider field of view

7-inch high-definition large screen. Aerospace aluminum high-strength material. Sensitive touch, simple and clear interface.

CNC aviation aluminum body & nozzle: high strength, corrosion resistance, precise hole position.

💾 Self Storage · No lost print files

Standard USB port – support U disk import data. Import icons, pictures, logos / TXT documents, EXCEL spreadsheet files via USB flash drive.

Icon, Logo storageSupport BMP formatLocal or USB drive

⚙️ One-click Setup · Save labor and time

Content Auto Variable Function · Automatic product counting function.

One key to set automatic variable date, time, QR code, barcode. Multi-line variable printing content – eliminates manual inventory.

Fixed / Variable QR codeFixed / Variable BarcodesAutocounter Timecode

🔡 Diversity of coding content

Numbers · Date · Text · Letters · Icon · Counting number · QR code · DM-GS1 code · Running number

📅 Time/date variables 🔤 Optional font library 🔡 Font Size Adjustment 🖼️ Graphics, Logos 🌐 Multi-language printing

📐 Split design · Adjustable bracket

High quality hosts – high sensitivity, faster response, easy to operate, beautiful and durable.

Precision nozzles – new high-definition printhead, lightweight high strength, corrosion resistance. Available in 12.7/25.4mm.

Adjustable bracket – micro-adjustable, ensures printing position and distance for accurate coding.

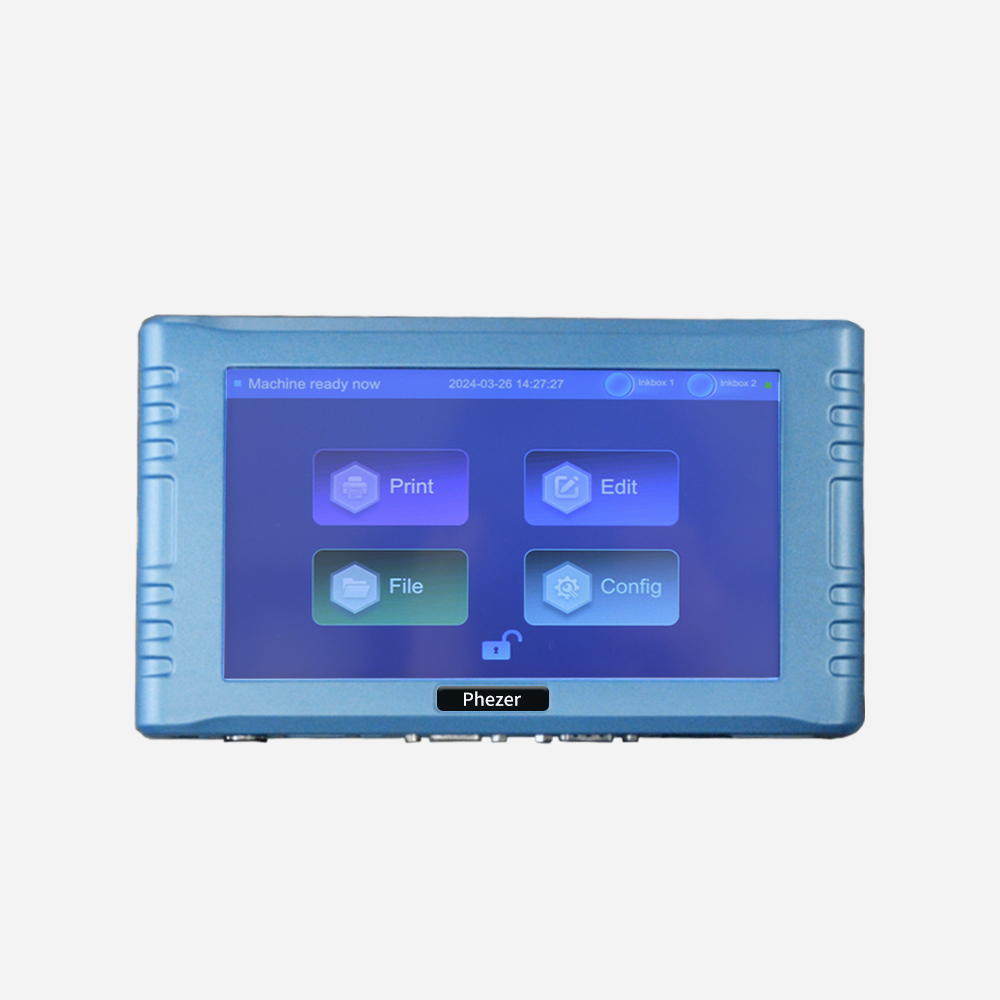

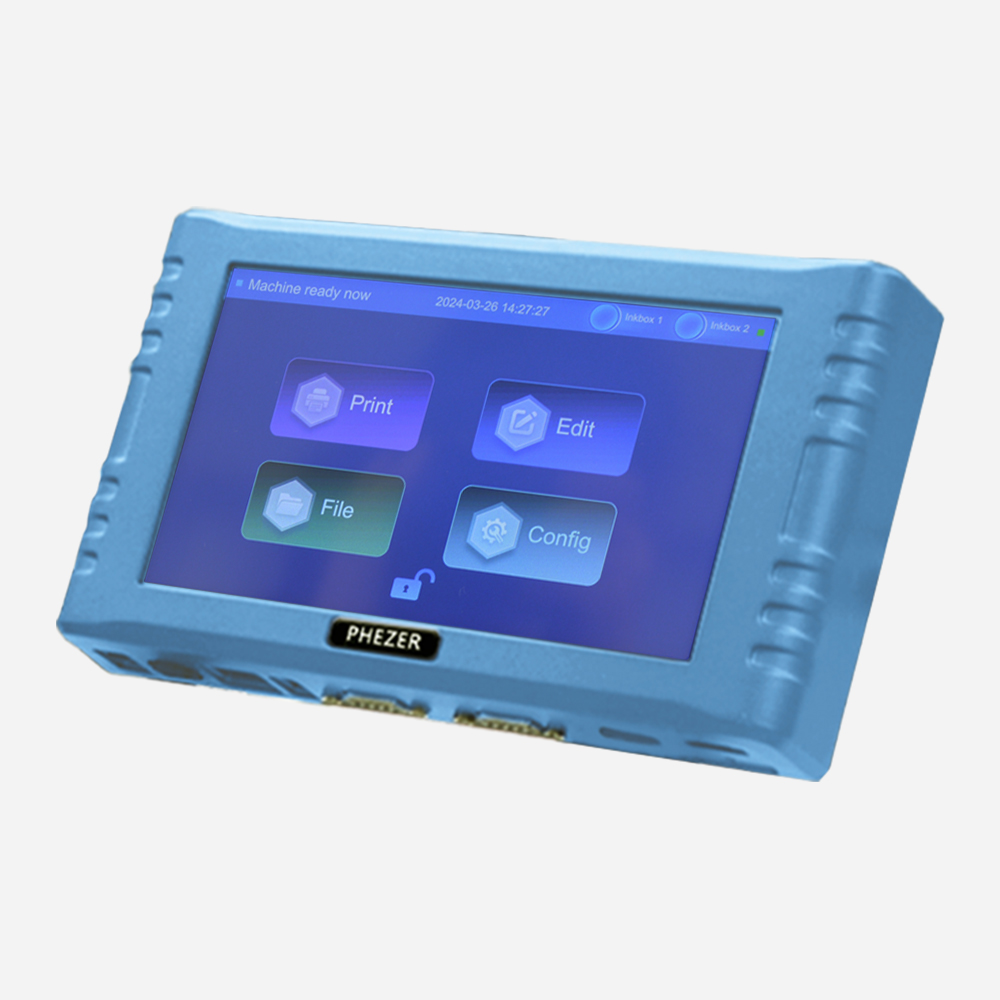

P260E

Brand new UI · better looking, easier to use

Unprecedented value for money. Comprehensive upgrade in appearance, highlighting hard-core nature.

Brand new UI experience, simple interface
Full-screen zoom for image & text editing
Space gray aluminum body, compact, corrosion-resistant
High value for money
Real-time variable data printing, anti-counterfeiting & traceability
Option to choose single or double printheads

P260E fully combines simplicity with versatility. Clean controller interface – anyone can quickly become proficient. High-performance industrial-grade Cortex-A7 1.2GHz dual-core processor, proprietary print engine algorithm, industrial-grade FPGA chip. Interfaces: USB, serial ports, information control, optical sensor, encoder. Stable in high/low temperature, dusty, humid environments. Linux secure smart OS, proprietary high-speed printing management system. Dynamic grouping, traceability, anti-counterfeiting, food/drug supervision codes. Max resolution 300DPI. OEM branding supported.

📋 Technical Parameters

Parameter	Value
Printing Type	TU 2.5 Thermal Foaming Head
Print Accuracy	Optional 150dpi low resolution / 300dpi high resolution, adjustable gray level 1-6
Print Height	Min 1mm / Max 25.4mm
Print Contents	Multi-language characters, dynamic traceability QR code, bar code, image, serial number, date, shift, counter, variable database, network/serial real-time dynamic data
Printable Substrate	Cardboard, plastic, electronic component, metal, cable, stone, pipe, auto parts, industrial/chemical packaging, pharmaceutical/food/gift packaging
Ink Type	42ml food grade/water based/oil based/weak solvent/solvent ink cartridge, CISS with large capacity ink bag
Ink Color	Black, white, red, yellow, blue, green, invisible, UV
Cartridge Chip	RFID non-contact chip for automatically identifying ink parameters and recording ink remaining
Operating System	Embedded Linux operating system
Main Hardware	Cortex-A7 1.2GHz dual core processor, FPGA algorithm acceleration chipset
Communication Interface	USB, RS232, network
External Interface	Optical sensor, encoder, alarm light
Power Supply	100-240V AC input, 30 VA output
Material / Dimensions	Industrial grade standard protective case (aerospace grade aluminum) · 206mm118mm32.6mm
Environment	Temperature: 0-45°C, humidity: 30-90%RH

📦 Industries
Packing carton Medicine Furniture & wood Food packaging PET plastics

🔐 Advanced codes
GS1 Data Matrix Dynamic security barcode Multi-group printing HD bold font Multi-dot font

📦 All Part Include (ink cartridge tools & accessories)
P260 TI printer30Y 30A Power adapterStainless steel tubeFiber optic sensorUSB DiskNozzle link cableAluminum alloy print headGround wire connectionTools

“Quality in hand, not a one-shot deal.” — Carved to withstand critical scrutiny. | P260 | P260E · 2026 New Online Machine
