APPLICATION

Cans

Glass

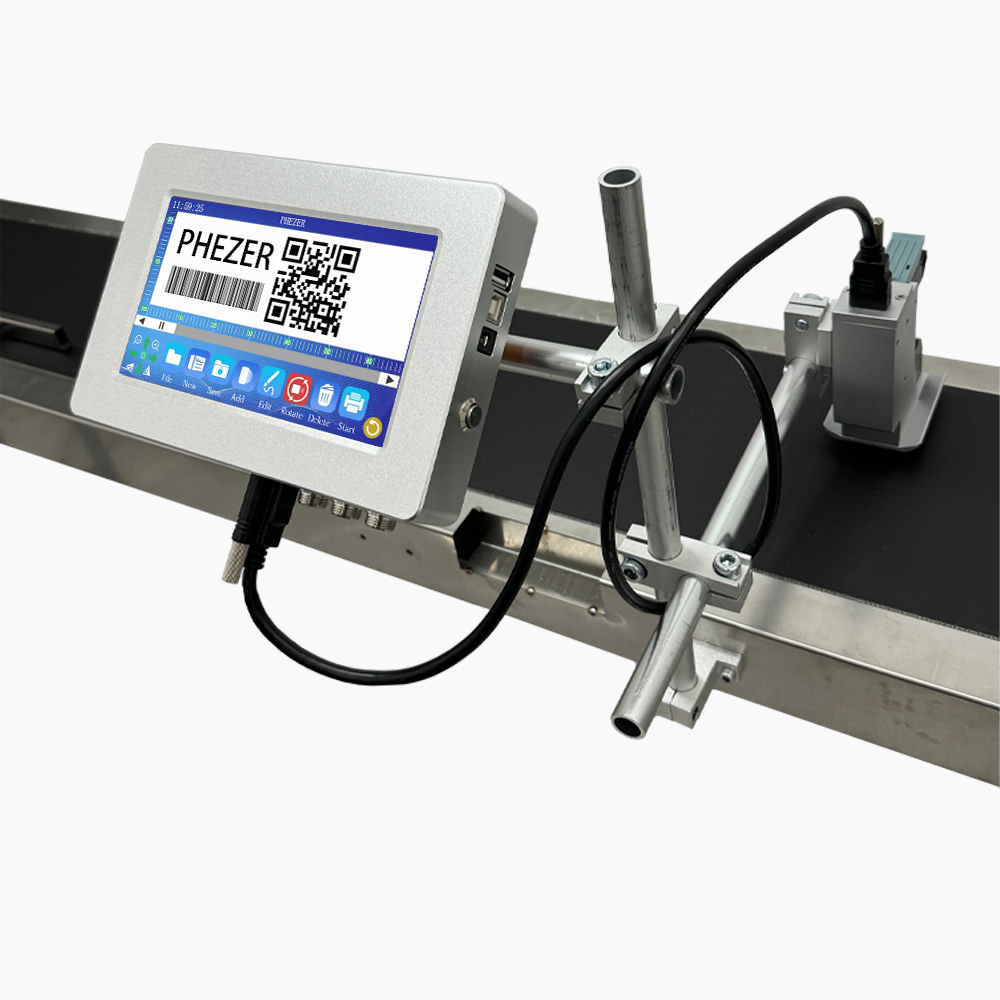

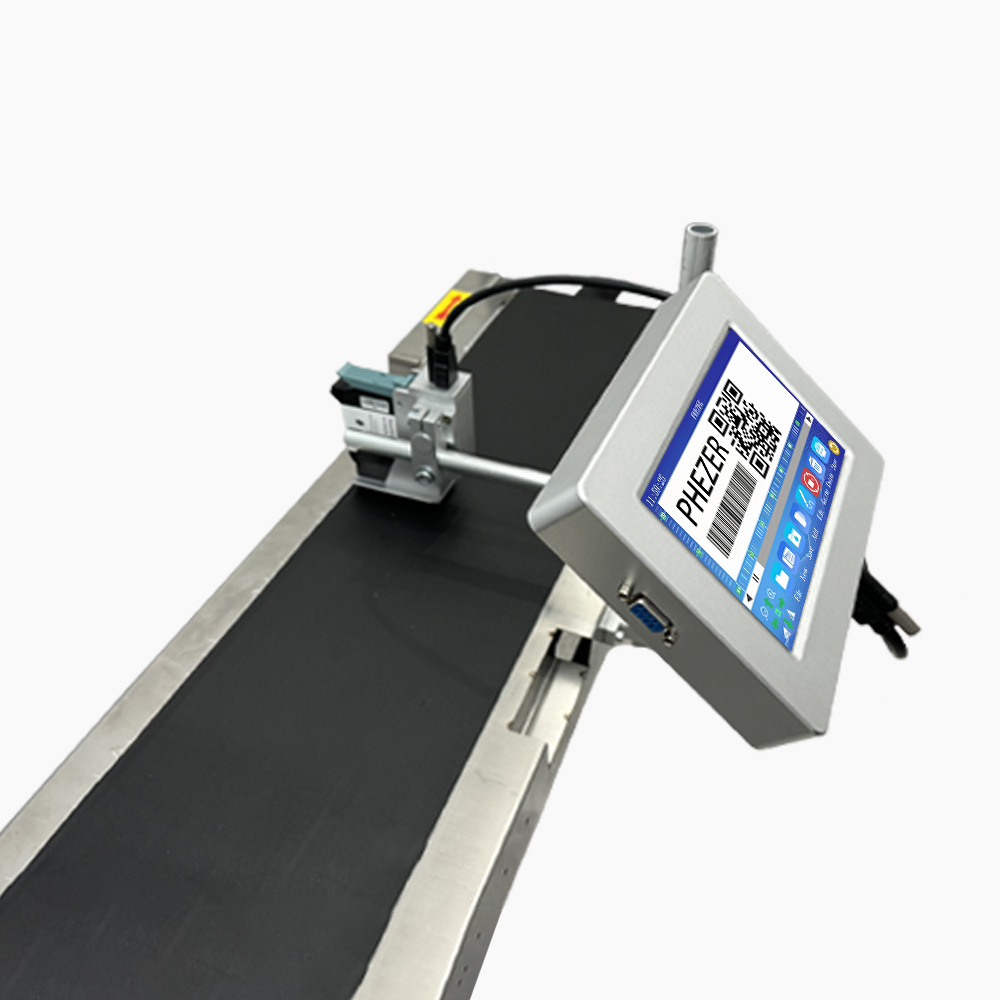

U7-Plus Variable Data Inkjet System

7 Inches color screen/600dpi High resolution printing
LAN (customizable)/Cortex-A9 quad core CPU
Wi-Fi for software update only
Support external encoder

SPECIFICATIONS

Print Head: Thermal inkjet 2.5	Material of Printer: Aluminium alloy
Operation System: Linux	Print Distance: Best quality with 2-5mm
CPU: Quad core 1.4GHz	Weight: Controller 0.45KG, Printhead 0.25KG
Print Height: 1-12.7m/1-25.4mm	Ink Type: Water-based/42ml, Solvent/42ml
Print Resolution: 600dpi (standard)	Ink Color: Black, White, Red, Blue, Yellow, Green, Invisible, UV
Interface: USB, RS232, encoder, photocell, LAN (customizable), alarm light	Language: Chinese, English, Turkish, Arabic, Korean, Spanish, Russian, Portuguese, Italian
Print Content: Text, time, symbol, QR code, bar code, DM code, image, counting number, variable data	Print Materials: Plastic, carton, stone, pipe, cable, metal, electronic, wood, glass, automotive parts
Adapter: AC input 100-240V; DC output 12V or 16.8V/2A	Dimension: Controller 1288642mm, Printhead 10010034mm
Operational Environment: Temperature 10-45°C (The best:20-30°C) Humidity 40%-60%Rh

MAIN ADVANTAGES

Intelligent

Embedded Intelligent operation system. Support Wi-Fi connection for remote control and online update. Support USB flash disk database and external real-time variable database printing.

Efficient

New aluminium alloy cover with good heat dissipation, suit for long time working.

Low Cost, High Performance

Original imported inkjet engine, low cost and high quality printing performance. original imported ink, suitable for all kinds of materials and industries.

Industrial Design

Resistive touch screen, anti-interference and durable.Aluminium alloy cover, artistic and fashion.

Portable

Separated design with vernier device, the printhead is portable and easy to install.

Worry Free

Simple operation, non-maintenance. One year free warranty and lifetime maintenance.

Recommendations for small budgets

U7-Plus Inline Printer Low Consumables

Main Core Upgrade | A classic must-have

Low consumable cost chip upgrade maintenance free

Newly upgraded 7-inch touch screen, one-piece molded quality.

High-end quality to show the utmost.

Advantages

Professional inkjet coding equipment intelligence, for your protection

Professionalinkjet equipment intelligent manufacturing escort for you.

High-speed coding
70M
Multilingual
Multi-font library

Variable data
Database Import
Production Line Carry

Cost reduction
Cost reduction

Versatile Printing Contents

Free editing of date/text/letter/count/graphic codes, etc.

A variety of printing content can be easily added, such as: text, letters, number, graphics and other printing contents.

1. Hosts

2. Print head

3. Power cord

4. Sensor

5. Data cable

6. Brackets

Product Model: U7-Plus Inline Printer

Machine Material: Aluminum Alloy

Resolution: 300dpi/600dpi

Printing Speed: ≤ 70m/min

Character Height: 2-12.7mm/25.4mm

Maximum Resolution: 360° arbitrary rotation

High-resolution anti-clogging design

Two sizes of nozzles: 12.7mm/25.4mm all-aluminum material, corrosion-resistant, 360° arbitrary rotation

High resolution print position error < 5mm

Printing distance error < 5mm

Touch-screen operation with all-aluminum body

7-inch full-color touch screen, the operation interface at a glance

The operation interface is simple and clear, all aluminum body nozzle, high strength corrosion resistance, precise hole position

60dpi High resolution 1200x2400 dpi Corrosion resistance Thermal Foaming Technology

U7-Plus Variable Data Inkjet System · Inline Printer
