APPLICATION

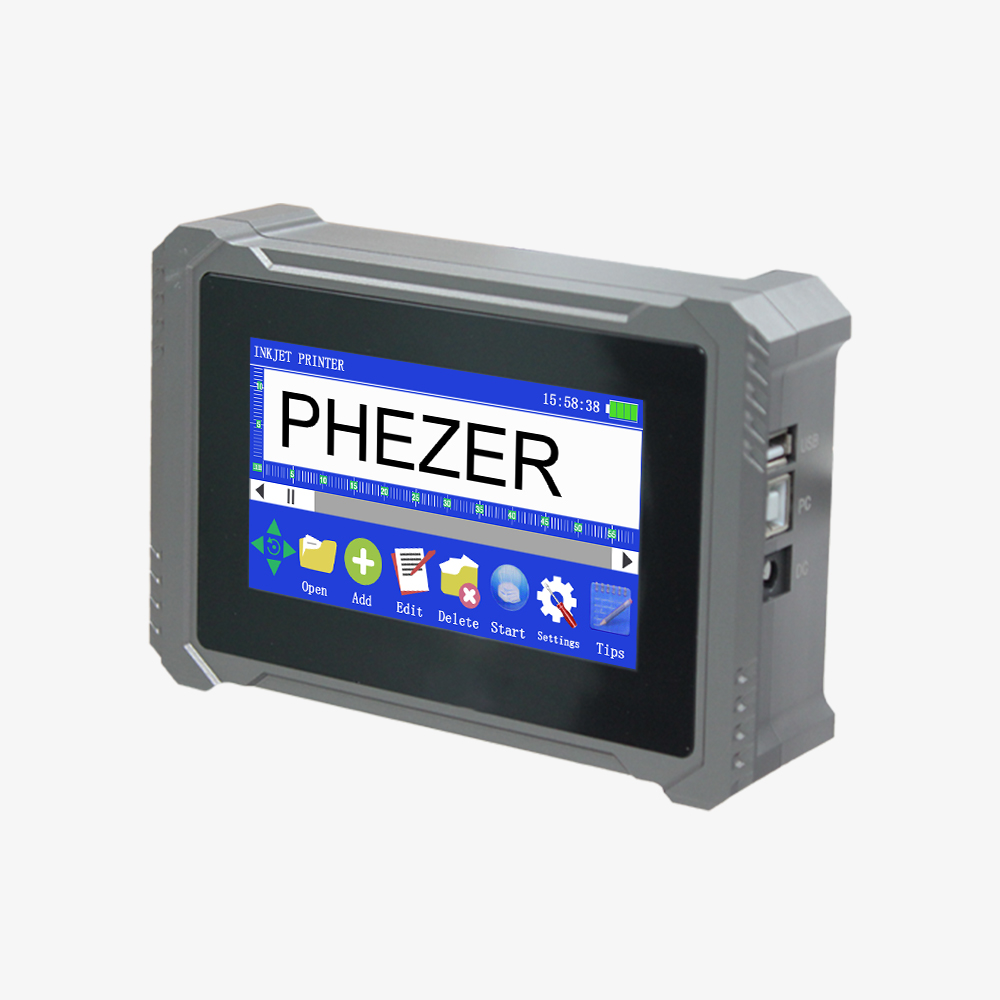

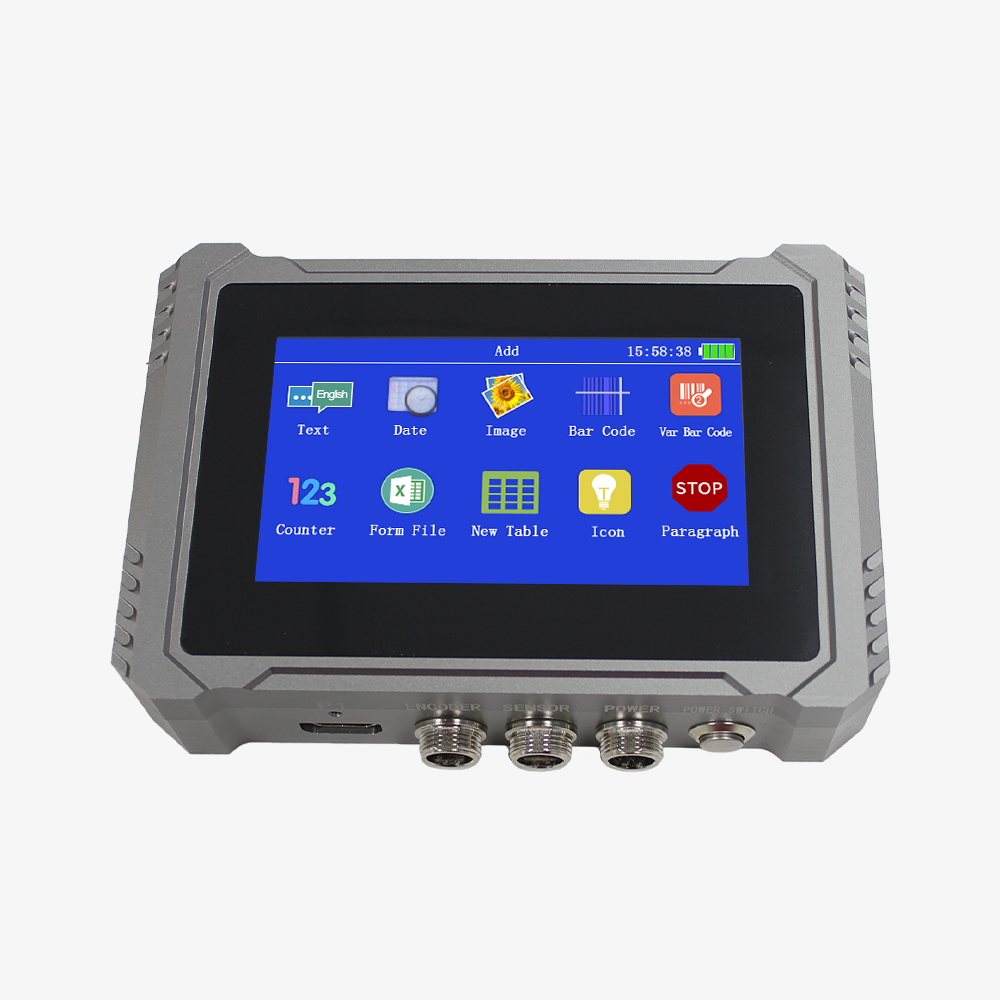

U3-PIUS Variable Data Inkjet System

4.3 Inches color screen / 600dpi High resolution printing LAN (customizable) / Cortex-A9 quad core CPU Wi-Fi for software update only Support external encoder

Cans Glass

SPECIFICATIONS

Print Head: Thermal inkjet 2.5
Material of Printer: Aluminium alloy

Operation System: Linux
Print Distance: Best quality with 2-5mm

CPU: Quad core 1.4GHz
Weight: Controller 0.45KG, Printhead 0.25KG

Print Height: 1-12.7m/1-25.4mm
Ink Type: Water-based/42ml, Solvent/42ml

Print Resolution: 600dpi (standard)
Ink Color: Black, White, Red, Blue, Yellow, Green, Invisible, UV

Interface: USB, RS232, encoder, photocell, LAN (customizable), alarm light

Language: Chinese, English, Turkish, Arabic, Korean, Spanish, Russian, Portuguese, Italian

Print Content: Text, time, symbol, QR code, bar code, DM code, image, counting number, variable data

Print Materials: Plastic, carton, stone, pipe, cable, metal, electronic, wood, glass, automotive parts

Adapter: AC input 100-240V; DC output 12V or 16.8V/2A

Dimension: Controller 128*86*42mm, Printhead 100*100*34mm

Operational Environment: Temperature 10-45°C(The best:20-30°C)Humidity 40%-60%Rh

MAIN ADVANTAGES

Intelligent

Embedded Intelligent operation system. Support Wi-Fi connection for remote control and online update. Support USB flash disk database and external real-time variable database printing.

Efficient

New aluminium alloy cover with good heat dissipation, suit for long time working.

Low Cost, High Performance

Original imported inkjet engine, low cost and high quality printing performance. original imported ink, suitable for all kinds of materials and industries.

Portable

Separated design with vernier device, the printhead is portable and easy to install.

Industrial Design

Resistive touch screen, anti-interference and durable.Aluminium alloy cover, artistic and fashion.

Worry Free

Simple operation, non-maintenance. One year free warranty and lifetime maintenance.

The parameyers the printer are subject to change. If there is fluctuation, according to the actual object please. Copyright owned by Phezer.
