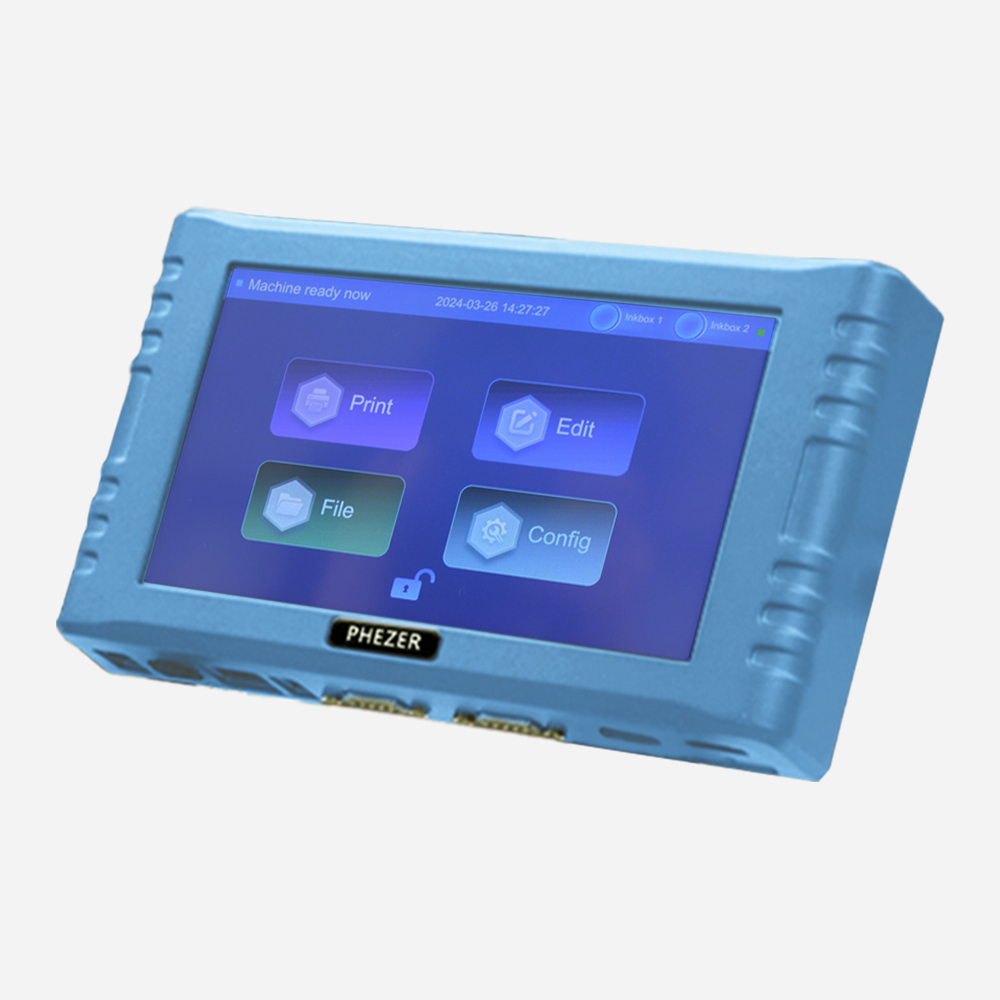

P270E Variable Data Inkjet System

7Inches color screen
600dpi High resolution printing
Print height: 2-12.7mm/2-25.4mm
Support 1-2 heads

Online Inkjet Printer

Support for multiple languages

Cores:
Core A: 4
Core B: 6
Core C: 8

Direct printing, no need to connect to a computer

600DPI High resolution printing

Support variable database

Support external encoder and photoelectric sensor

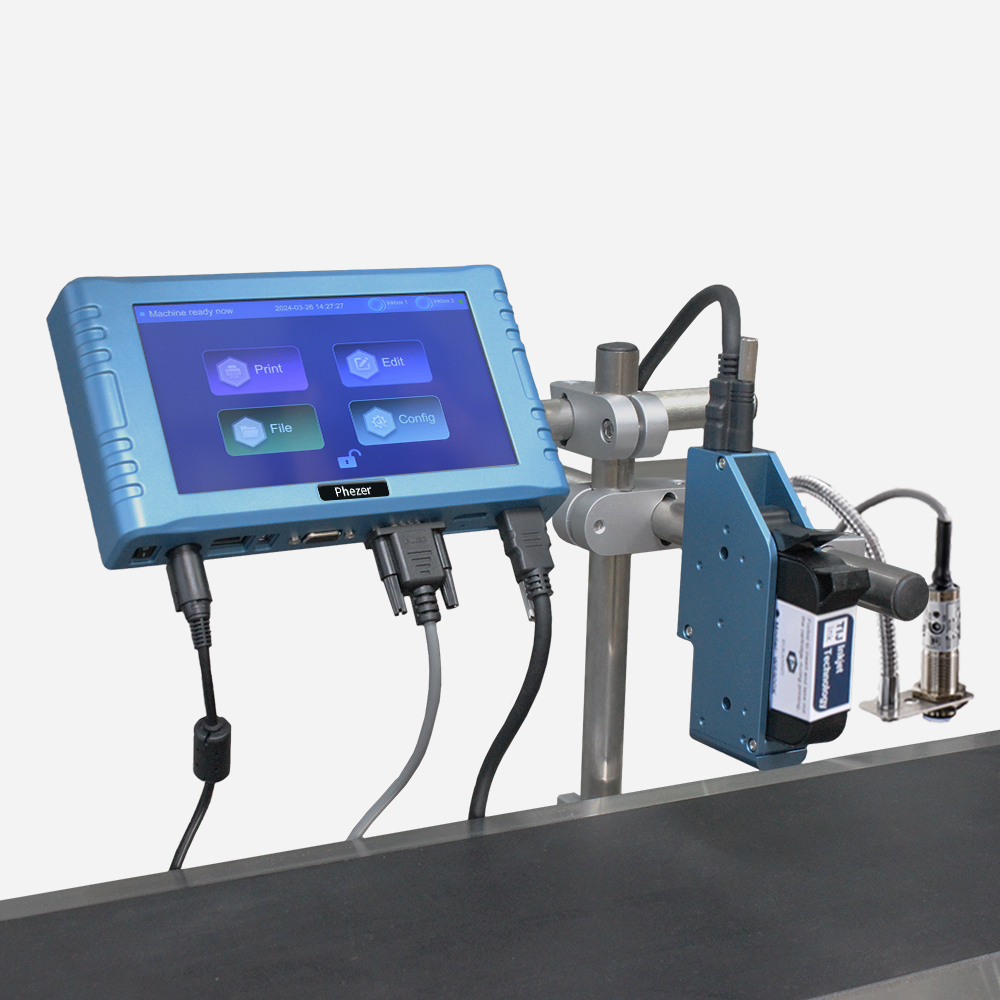

Automatic assembly line coding machine

Can be connected to a variety of pipeline intelligent coding to improve production efficiency. The inkjet code is clear and can not be erased, the conveyor speed can be adjusted.

Standard USB port
Support U disk import data
Import icons, pictures, logos/TXT documents, EXCEL spreadsheet files via USB flash drive

Coding speed ≤ 90 m/min
Response speed ≤ 300 times/min
Improve production, double the efficiency, high speed and stable operation.
Note: The speed of coding is different by the printing font size, concentration and other factors.

Multiple printheads can be combined and printed independently or in a patchwork
Get rid of the equipment single coding, to cope with the challenges of the industry multi-head demand please contact customer service or the company's technical staff to develop programs.

Product Details

Machine ready now
2024-03-28 14:27:27

Edit

File

Config

SPECIFICATIONS

Printing Type: TU 2.5 Thermal Foaming Head	Print Height: 2–12.7mm/2–25.4mm
Operating System: Embedded Linux operating system	Communication interface: USB, RS232, network
Power Supply: 100–240V AC input, 30V 3A DC output	Size: 206mm118mm32.6mm
Print Accuracy: Optional 150dpi low resolution and 300dpi high resolution, adjustable printing gray level 1–6
Print Contents: Multilanguage characters,dynamic traceability QR code, barcode, image, serial number, date, dynamic data printing
External interface: Optical sensor, encoder, alarm light
Cartridge chip: RFID non-contact chip for automatically identifying ink parameters and recording ink remaining
Printable Substrate: Cardboard, plastic, electronic component, metal, cable, wires, stone, pipe, auto parts
Ink Type: 42ml food grade/water based/oil based/weak solvent/ solvent ink cartridge, ciss with large capacity ink bag
Ink color: Black, white, red, yellow, blue, green, invisible, UV
Work Environment: Temperature:0–45°c, humidity: 30–70%RH

MAIN ADVANTAGES

Brand new UI experience, simple interface, more efficient operation
Support full-screen zoom for easy image and text editing
Space gray aluminum body, compact, lightweight and corrosion-resistant
High value for money
Real-time variable data printing, support anti-counterfeiting and traceability printing
Option to choose single or double printheads

All Part Include

1. Ink cartridge tools

2. P260 TIJ printer

3. 30V 30A Power adapter

4. Adjustable bracket

5. Micro-adjustable bracket, effectively ensure the printing position and printing distance to ensure accurate coding.

Application
Wide range of applications

Split design
Separate design within adjustable wide range of applications

Product Certificates
Product Certificate

P270E Variable Data Inkjet System · Online Inkjet Printer
