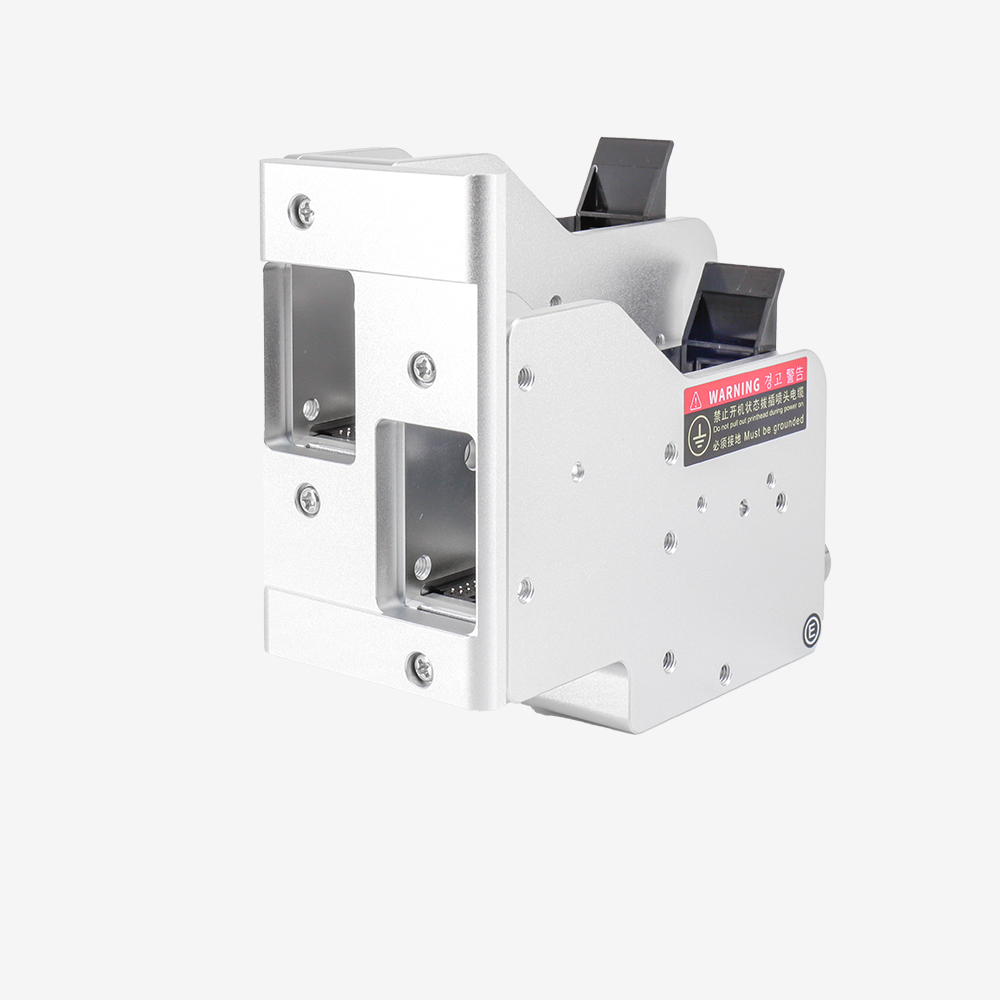

PD4

HIGH SPEED VARIABLE DATE PRINTING SYSTEM

GS1 DataMatrixNetwork remote centralized managementProduction line alarm light controlCalculate printing costs in real timeWireless keyboard and mouse controlAnti-counterfeiting trace data printingPrinting speed up to 203m/min

More reliable and professional hardware

Use of Cortex-A7 1.2GHz dual core industrial grade processor
Self developed industrial grade FPGA. More stable, reliable and anti-interferences in various conditions rendering the printing a unique experience. The print engine uses TIJ dedicated ASIC chip, a perfect match for a variety of original and licensed HP inks. Professional Cartridge preheat algorithm to ensure optimum print quality at high and low temperatures and environments.

More Powerful and Smarter software

Intelligent embedded Linux operating system provides a professional and more user friendly interface. Embedded powerful drop consumption algorithm that allow instant calculation of cost per print. Powerful variable functions of the 2D Code to meet the today growing customers' demand. Efficient and flexible variable database functions to meet various applications requirements for product traceability.

Technical Parameters

Body Material	Industrial Stainless Steel
Operating System	Embedded Operating System
Comm. Interface	Network Interface USB/RJ45 RS-232
Working Environment	Max Temp 55C Degrees / Humidity 30 to 70% RH

Machine Power Supply	30Volts 3Amps DC output
Dimension Controller	controller: 209mm122.5mm61mm / Head Holster 114mm108mm54.3mm
Main Hardware	Cortex-A7 1.2GHz dual core processor industrial grade FPGA chip
Languages	Italian, English, French, Finnish, Arabic, Danish, German, Russian, Norwegian, Portuguese, Spanish, Japanese.
External Interface	Photocell, Encoder, External Inverter/Inverse Control, Alarm outputs, Serial Number external Reset, External data Selection.

Nozzle Type	Thermally Favorable Head TL12.5
Print Distance	2mm to 5mm
Print Accuracy	150DPI / 300DPI / 600DPI
Print Speed	2030/900PI \| 152m/120PI \| 220m/150DPI \| 60.9m/300DPI
Printing Head	Minimum 1mm / Maximum 50.8mm
Ink Type	Aqueous or Solvent based 42ml Cartridges CIS S
Ink Color	Black, White, Red, Yellow, Blue, Green, Stealth, UV readable
Cartridge Chip	Contactless RFID tags for automatic identification and recording ink parameters and consumptions
Printable Substrates	Cardboard, Plastic, Metal, Cable, Electronic components, Auto Parts, Industrial Chemical packaging, Pharmaceuticals and more.
Print Contents	Multi language Characters, 20Code, Barcodes, Images, Serial Numbers, Date, Counters, Variable Database, RS232 to receive real data to print
