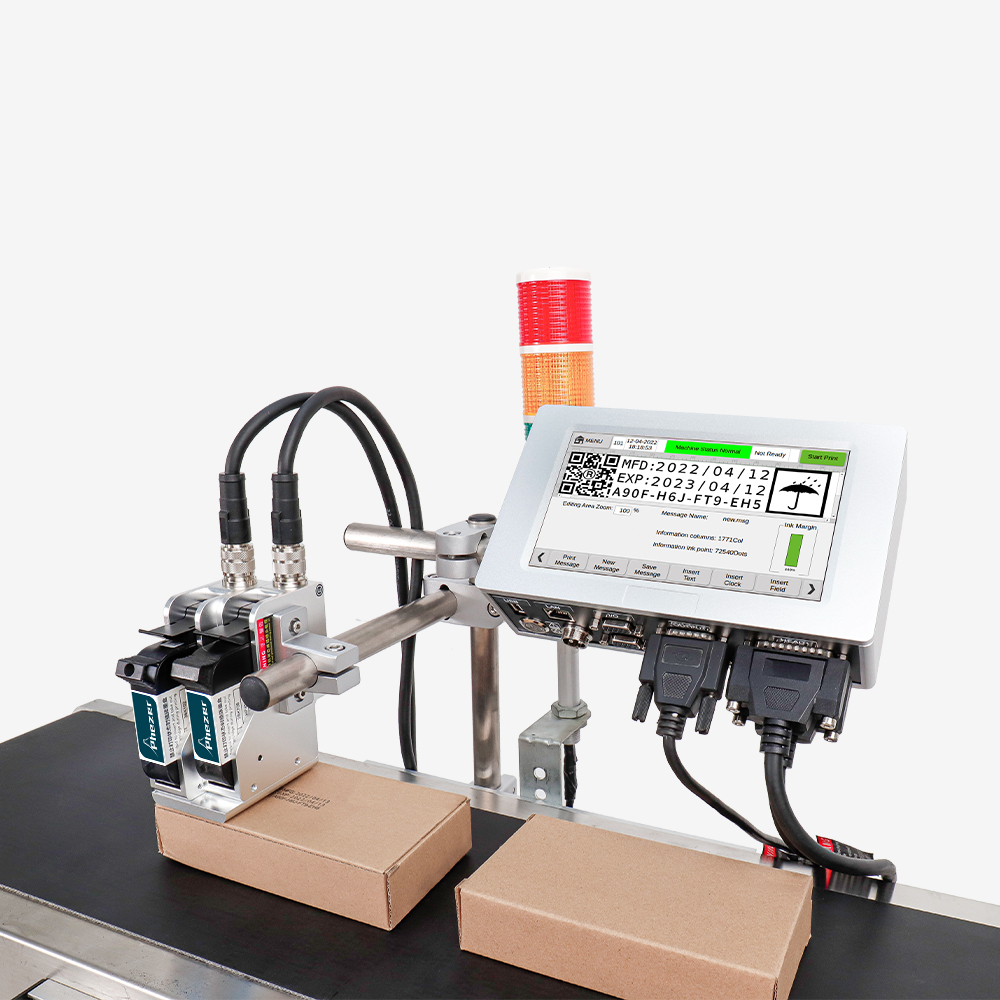

PD1E Half-Inch Single-Head Inkjet Printer | TIJ Thermal Inkjet Printer

Core Advantages

Calculate Printing Costs in Real Time

Anti-Counterfeiting Trace Data Printing

Software Adjustable Seamless Splicing

GS1 Datamatrix Support

Wireless Keyboard & Mouse Control

High Printing Speed (Up to 406m/min)

Network Remote Centralized Management

Production Line Alarm Light Control

More Reliable and Professional Hardware

Use of Cortex-A7 1.2GHz dual core industrial grade processor, self developed industrial grade FPGA. More stable, reliable and anti-interferences in various conditions rendering the printing a unique experience. The print engine uses TIJ dedicated ASIC chip, a perfect match for a variety of original and licensed HP Inks. Professional Cartridge preheat algorithm to ensure optimum print quality at high and low temperatures and environments.

More Powerful and Smarter Software

Intelligent embedded Linux operating system provides a professional and more user friendly interface. Embedded powerful drop consumption algorithm that allow instant calculation of cost per print. Powerful variable functions of the 2D Code to meet the today growing customers' demand. Efficient and flexible variable database functions to meet various applications requirements for product traceability.

Printing Parameters

Parameter	Specification
Print resolution	Up to 600x600 DPI
Number of printheads	1/2
Print height	1-12.7mm
Print speed	Up to 406m/min
Cartridge chip	RFID non-contact chip, automatically identifies ink parameters and records ink remaining amount
Ink color	Black, white, red, yellow, blue, green, invisible, UV
Ink type	42ml food grade, water-based, oil-based, weak solvent, solvent ink cartridge, large capacity ink continuous ink supply system
Printing content	Multi-language, GS1 code, graphics, serial numbers, traceability codes, barcodes, dates, shifts, counters, variable databases, etc
Printing material	Cartons, plastics, metals, plates, pipes, stones, wires & cables, electronic components, auto parts, industrial chemical packaging, pharmaceutical and food, gift packaging

Machine Parameters

Parameter	Specification
Operating system	Embedded Linux operating system
Data interface	USB, RS232, TCP/IP net port
External interface	Optical sensor, encoder, alarm control output, serial number output, external serial number update, external printing information selection, flip and reverse control, printhead connection port

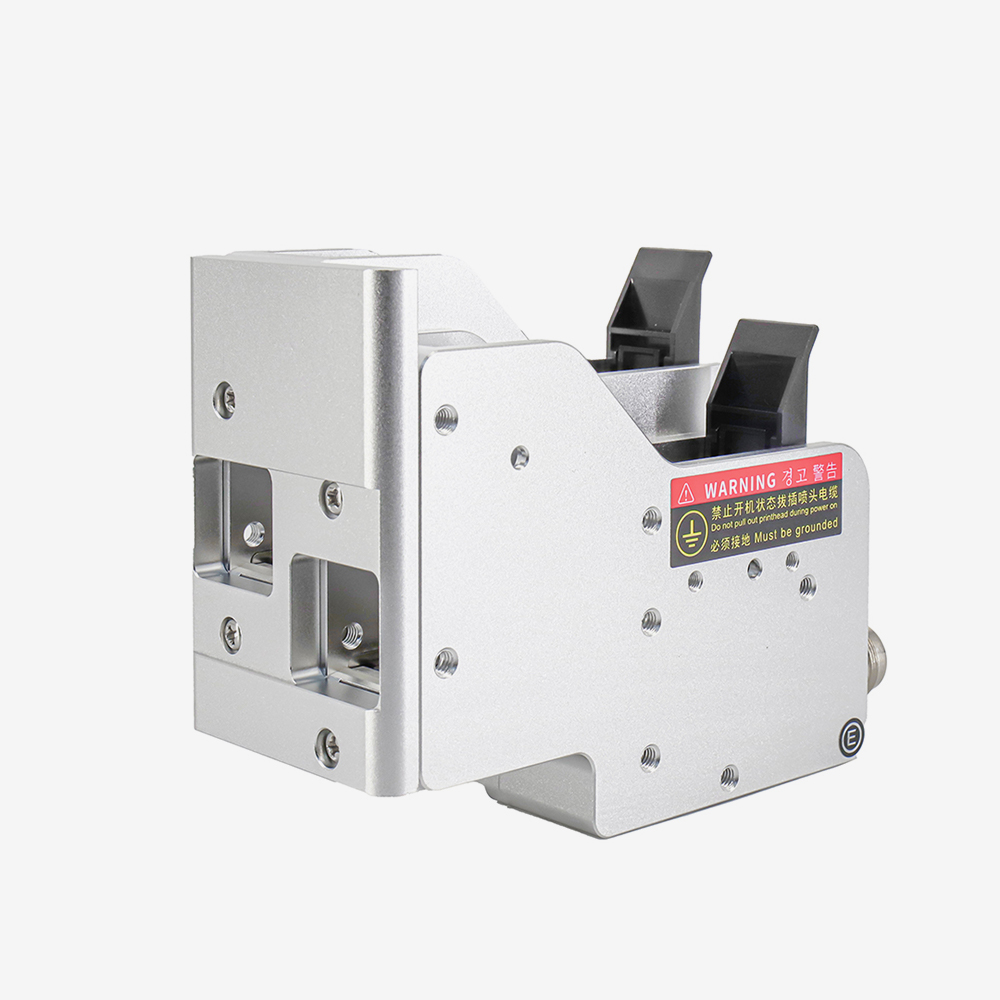

Printhead installation	Separate printhead installation, optional dual printheads can be spliced or used separately
Machine material	Industrial grade standard protective body (aerospace grade aluminum, industrial-grade stainless steel)
Working environment	Temperature 0-45℃ / Humidity 30-70% RH
Main hardware	Cortex-A7 1.2GHz dual core processor, FPGA algorithm acceleration chipset

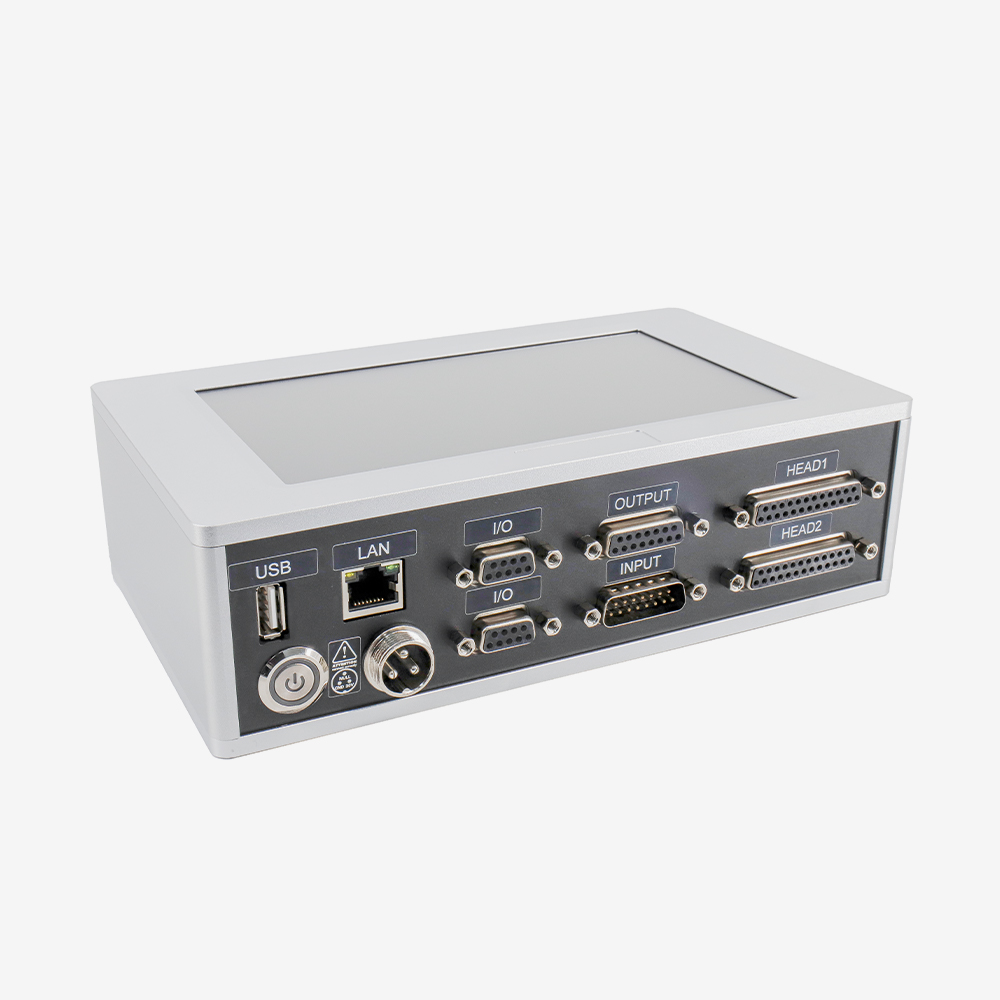

Machine specifications	Controller: 209x122.5x61mm; Printhead: 114X82X27mm
Support language	Supports more than 40 national and regional languages (Chinese/English/Arabic/Russian/French/Vietnamese/Korean, etc.)

Application Fields

Electronic component Cosmetics Building Auto Aviation Wire Food Beverage Pipe Healthcare
