PD4E High Speed Variable Data Printing System | Industrial Inkjet Printer

Core Features & Advantages

GS1 DataMatrix Support

Network Remote Centralized Management

Production Line Alarm Light Control

Calculate Printing Costs in Real Time

Wireless Keyboard and Mouse Control

Anti-Counterfeiting Trace Data Printing

Printing Speed Up to 203m/min

Double Nozzles Seamless Stitching & Independent Installation

Easily Match Weighing/Packing/Paging Machine

Snap-on Cartridge (Simple & Reliable)

Adjustable Inkjet Concentration

Multiple Brackets & Installation Methods

More Reliable and Professional Hardware

Use of Cortex-A7 1.2GHz dual core industrial grade processor, self developed industrial grade FPGA. Use anti-interference industrial grade solid state electronic component SMT to build core motherboard. Full industrial hardware ensures smooth operation in various applications under complex working conditions. Professional cartridge preheat algorithm to ensure optimum print quality at high and low temperatures and environments.

More Powerful and Smarter Software

Intelligent embedded Linux operating system provides a professional and more user friendly interface. Embedded powerful drop consumption algorithm that allow instant calculation of cost per print. Powerful variable functions of the 2D Code to meet the today growing customers' demand. Efficient and flexible variable database functions to meet various applications requirements for product traceability.

Technical Parameters - Machine

Parameter	Specification
Body Material	Industrial Stainless steel
Operating System	Embedded Operating System
Comm. Interface	USB, RS232, TCP/IP
Working Environment	Max Temp 45C Degrees / Humidity 30 to 70% RH
Power Supply	30Volts 3Amps DC output

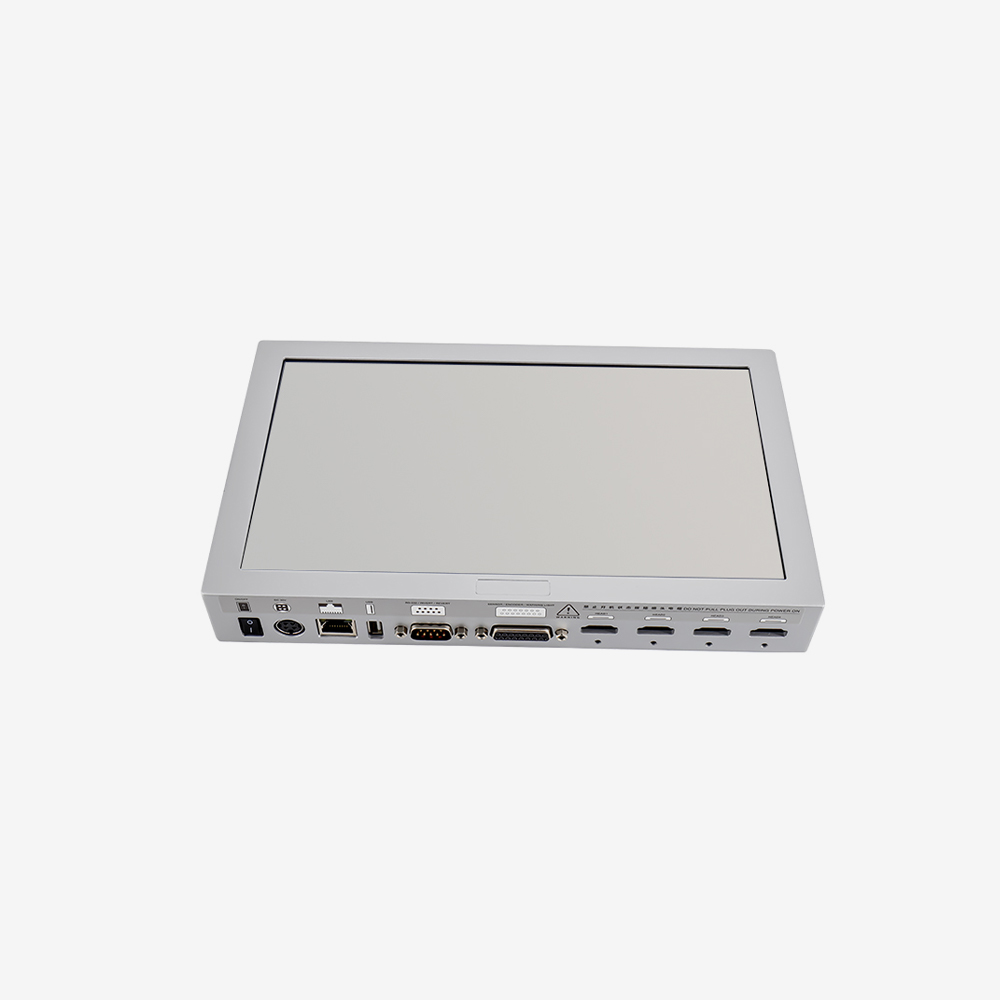

Dimension	Controller: 247.5mm147.8mm34.85mm / Head Holster 177.5mm109mm105mm
Main Hardware	Cortex-A7 1.2GHz dual core processor, industrial grade FPGA chip
Languages	More than 40 languages: Italian, English, French, Finnish, Arabic, Danish, German, Russian, Norwegian, Portuguese, Spanish, Japanese

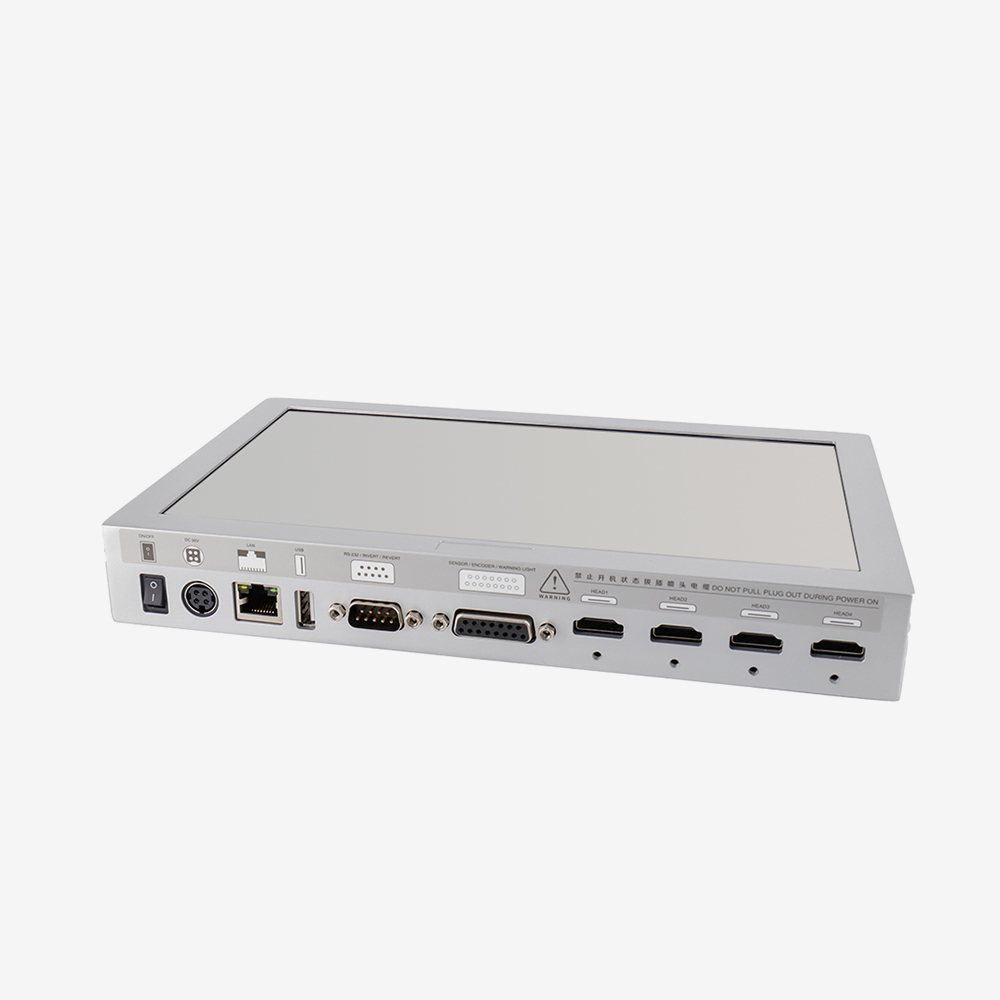

External interface	Sensor, Encoder, Alarm outputs, Nozzle connection port

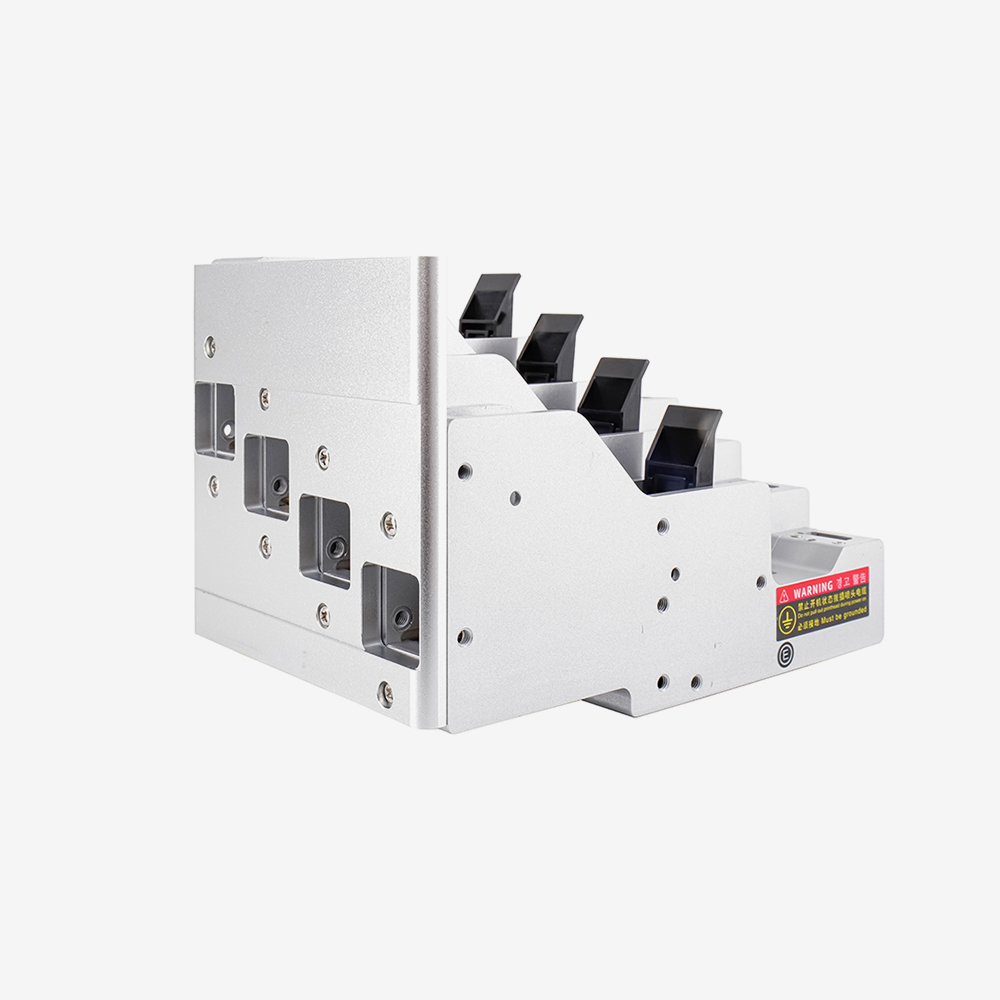

Technical Parameters - Printing Head

Parameter	Specification
Nozzle Type	Thermally Foamable Head TIJ2.5
Print Distance	2mm to 5mm
Print Accuracy	150DPI / 300DPI / 600DPI
Print Speed	203m/90DPI, 152m/120DPI, 120m/150DPI, 60.9m/300DPI
Print Height	Minimum 1mm / Maximum 50.8mm
Ink Type	Aqueous or Solvent based 42ml Cartridges CIS S
Ink Color	Black, White, Red, Yellow, Blue, Green, Stealth, UV readable
Cartridge Chip	Contactless RFID tags for automatic identification and recording ink parameters and consumptions
Printable Substrates	Cardboard, Plastic, Metal, Cables, Electronic components, Auto Parts, Industrial Chemical packaging, Pharmaceuticals and more
Print Contents	Multi language Characters, 2DCode, Barcodes, Images, Serial Numbers, Date, Counters, Variable Database, RS232 to receive real data to print

Application Fields & Printing Capabilities

Application Fields:

Packing carton Medicine Furniture and wood Food packaging PET plastics

Printing Capabilities:

GS1 Data Matrix Dynamic security barcode Multi-group printing HD bold font Multi-dot font
