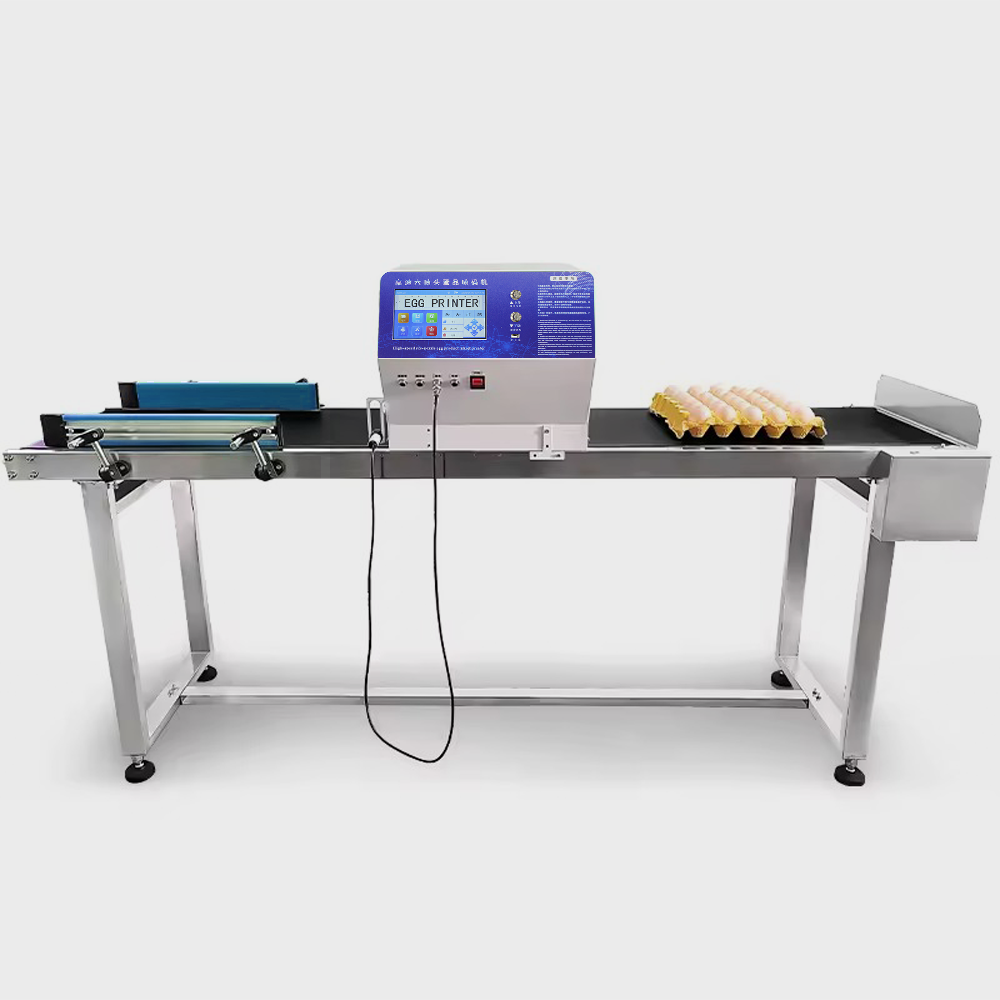

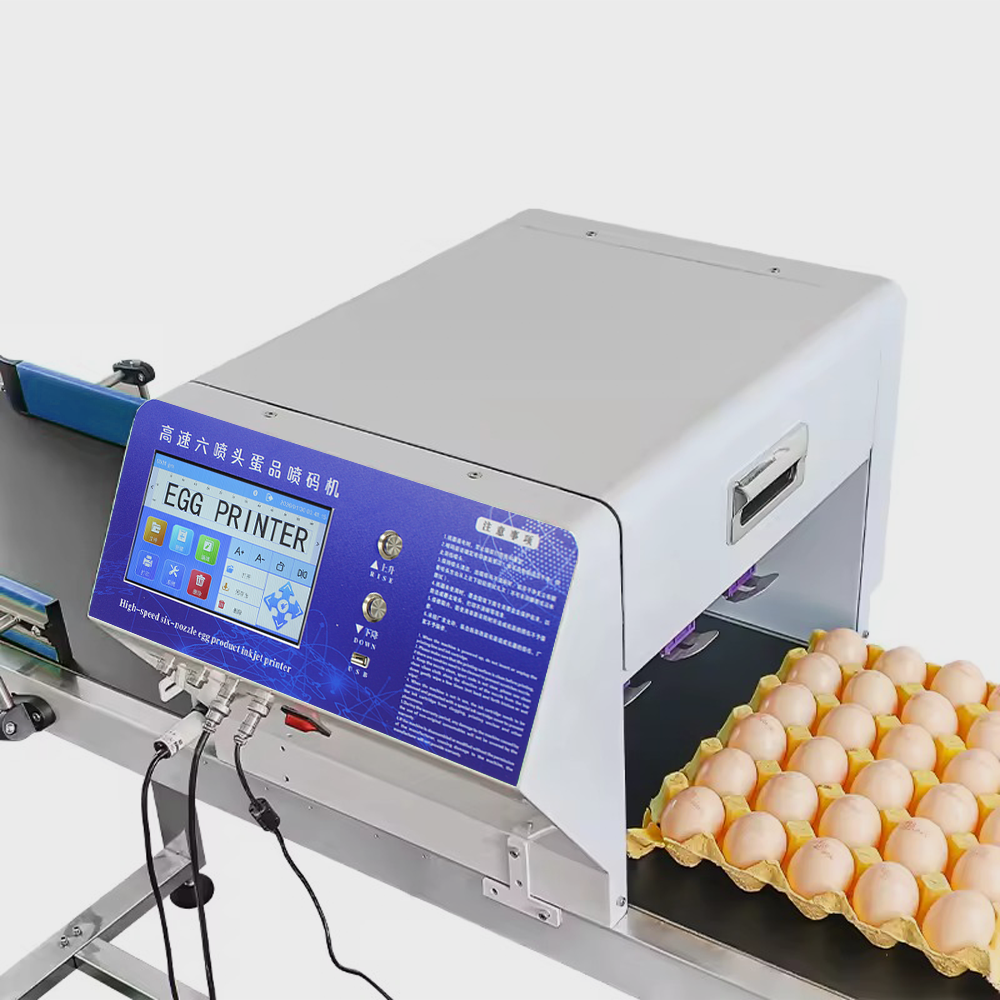

PG-5 Egg Product Inkjet Printer – 6-Head System

High-Precision & High-Efficiency Printing System — 600 DPI | 2–12.7mm Print Height | Multi-Nozzle Collaboration | Smart Touch Screen

6-Head Support

Simultaneous multi-nozzle operation for batch coding

600 DPI High-Def

Crystal-clear print resolution for fine details

Smart Touch Screen

Intuitive control panel for easy operation

Multi-Language

Supports 10+ languages for global deployment

Product Overview

The PG-5 Egg Product Inkjet Printer is a high-precision, high-efficiency coding system engineered for demanding production environments. Supporting up to 6 printheads operating simultaneously, it delivers rapid batch coding ideal for large-scale egg processing enterprises and breeding farms. The system features a fully automatic nozzle lifting device and maintenance-free online thermal foaming nozzles that can independently spray codes or be associated with any nozzle for maximum flexibility.

Comprehensive automation capabilities include automatic nozzle cleaning to prevent ink blockage and reduce manual maintenance. Photoelectric monitoring ensures accurate triggering and precise ink drying, eliminating errors or omissions. The smart touch screen control panel provides intuitive operation, while the compact machine size (535×370×330 mm) integrates easily into existing production lines with a conveyor height of less than 150 mm.

Key Features

6-head simultaneous operation	Automatic nozzle lifting device	Automatic nozzle cleaning function
Photoelectric monitoring for accuracy	Easy cartridge disassembly & replacement	70W low power consumption
600 DPI high-definition printing	Smart touch screen control panel	Wide voltage: 110–220VAC 50/60Hz

Technical Specifications

Model

PG-5 Egg Product Inkjet Printer

Print Height

2 – 12.7 mm

Print Distance

2 – 5 mm (nozzle to printing surface)

Print Resolution

600 DPI (high definition)

Overall Machine Size

535 × 370 × 330 mm (Conveyor Height: <150 mm)

Power

70 W

Power Supply

110 – 220 VAC, 50 / 60 Hz

Control Panel

Smart Touch Screen

External Interfaces

USB, Photoelectric Interface, Charging Interface

Print Content

Text, Time, Logo, Variable Barcode/QR Code, Serial Number, etc.

Print Materials

Egg, Kraft Paper, Cartons, Plastic Cards, Card-Making Materials, etc.

Supported Languages

Chinese, English, Italian, Russian, French, Spanish, Portuguese, Arabic, Japanese, Korean, etc.

Working Environment

Temperature 0 – 45 °C / Humidity 30 – 70% RH

Ink Color

Black, White, Red, Blue, Yellow, etc.

Nozzle of Ink Cartridge

12.7 mm

Ink Type

Water-Based

Advanced Capabilities

Efficient Multi-Nozzle Collaborative Operation

The 6 nozzles can operate simultaneously, achieving high-speed batch coding. This configuration is perfectly suited for the production line needs of high-volume egg processing enterprises and large-scale breeding farms.

Fully Automatic Nozzle Lifting Device

Maintenance-free online thermal foaming nozzles can independently spray codes or be associated with any nozzle. The design allows for easy disassembly and quick replacement of ink cartridges, minimizing production downtime.

Comprehensive Automation Capabilities

The equipment features an automatic nozzle cleaning function that effectively prevents ink blockage and significantly reduces manual maintenance requirements.

Accurate Positioning & Coding

Accurate triggering of coding eliminates errors or omissions. Real-time photoelectric monitoring combined with precise ink drying ensures every code is perfectly placed and instantly set.

PG-5 Egg Product Inkjet Printer — 6-Head High-Speed System for Industrial-Scale Egg Coding
